Fogstar Energy IP65-Rated 48V 16.1kWh Modular Battery Stack

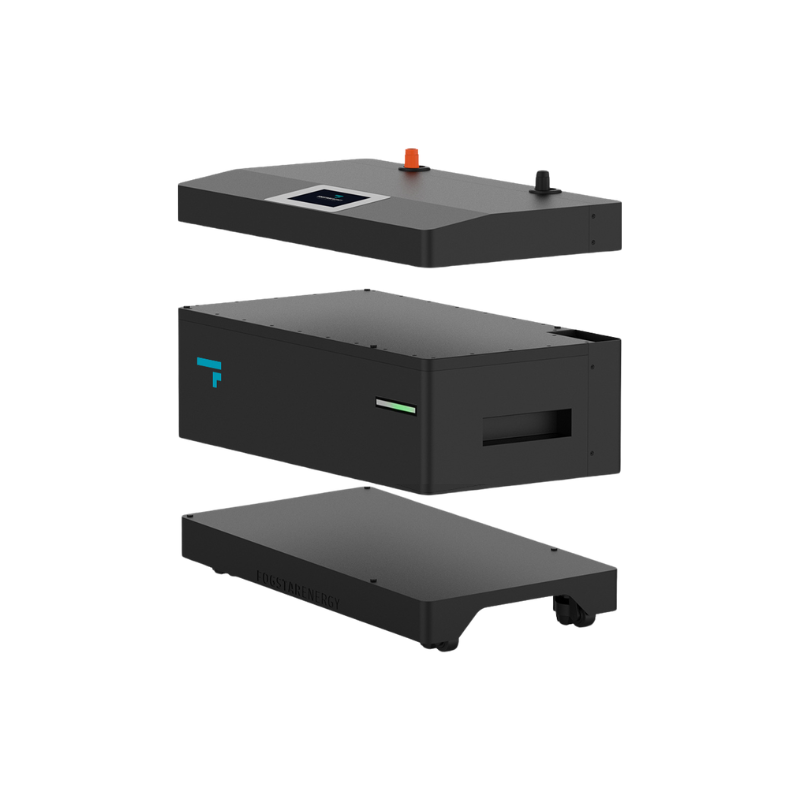

This version comes with a stack control panel and base.
Couldn't load pickup availability
Next available batch arriving February 2027: Orders placed before this update are unaffected and will ship as originally scheduled.
A single 16.1kWh LiFePO₄ battery module from Fogstar Energy, made for homes, commercial premises and light industrial sites, and ready to grow into a larger Modular Battery Stack.
Begin with one 16.1kWh module and add more over time, up to 64.4kWh in a single stack. The stack control unit and base plate tie the modules together, so they work as one battery with monitoring, protection and inverter communication built in.
Splitting the capacity into modules keeps each unit more manageable to move and install. It's housed in an IP65 enclosure with integrated heating and built-in fire suppression for safe, dependable running in tough conditions.
Built from Modules
Each battery is made up of 16.1kWh LiFePO₄ modules, so it's easier to install and service.
Integrated BMS
Manages and protects the system, with support for high-power operation.
Wide Inverter Support
CAN and RS485 communication, with protocols for popular inverters including LuxPower, Sunsynk, Solis, Victron, Voltacon and more.
Room to Expand
Up to four modules (64.4kWh) per stack, and stacks can be connected in parallel for up to 1.28MWh.
Sealed IP65 Housing
Protected against dust and moisture, so it can be installed indoors or outdoors.
Fire Suppression Built In
An automatic, heat-activated aerosol unit protects the inside of the battery, with no upkeep required.
Heated for Cold Conditions
On-board heating supports safe charging in low temperatures and operation in ambient conditions down to –20°C.
Cell Balancing
A 2A JK active balancer keeps cell voltages even, helping efficiency, stability and lifespan.
Built for High Loads
51.2V (48V) LV system for demanding inverters and large backup or off-grid setups.
6-Year Warranty
Plus 10 years of UK-based customer support.
Touchscreen Display
LCD screen for live monitoring and managing the system.
Isolation Breaker
A 350A breaker lets you safely isolate the whole stack for maintenance, faults or emergencies.
Seplos Module BMS
150A SEPLOS BMS for stable performance and reliable protection.
Rated Energy: 16.1 kWh
Nominal Voltage (V): 51.2 V
Operating Voltage (V): 43.2 V – 57.6 V
Cycle Life: 8,000 cycles at 91% DOD
Configuration: 16S1P
Working Temperature: 0 – 45 °C Charge (with heating) and –20 – 45 °C Discharge
Maximum Discharge Current: 150A
Maximum Charge Current: 150A
Capacity: 314Ah
Weight: 148kg

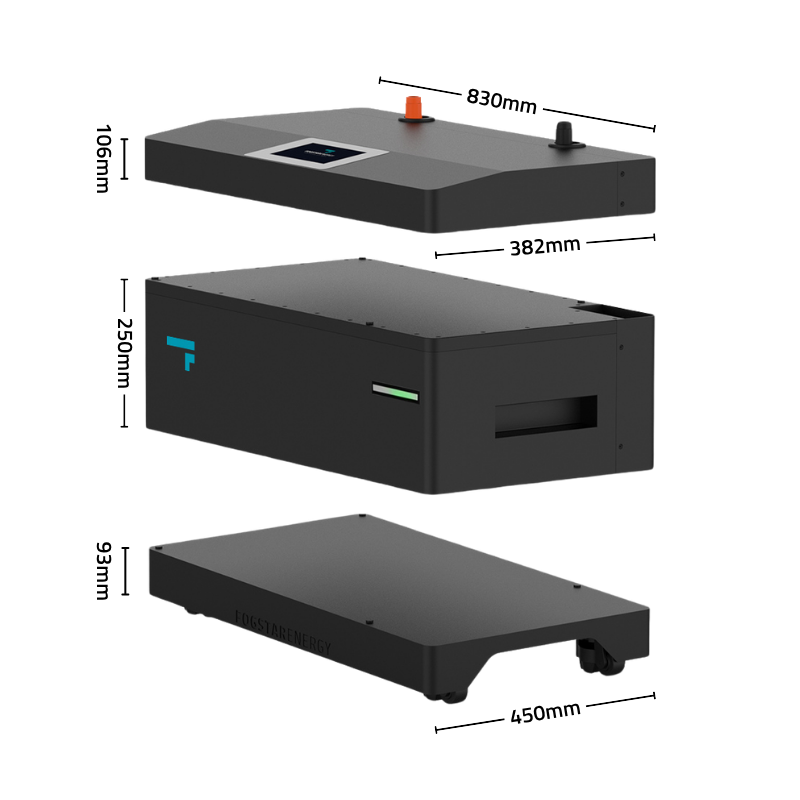

Dimensions: 830L x 450W x 449H mm
Communications: CAN / RS485
Ingress Protection: IP65
Pre-terminated 95mm² battery power cables, for connecting directly to the inverter or via an external busbar.
Battery-to-battery cables with Amphenol connectors for secure, low-resistance links.
A 1.5m communication cable for system control and data.
The power cables suit most inverters. In some setups the battery cables may need to go to a busbar, using the inverter manufacturer's own leads for the final connection. Always connect all negatives before the positive.
