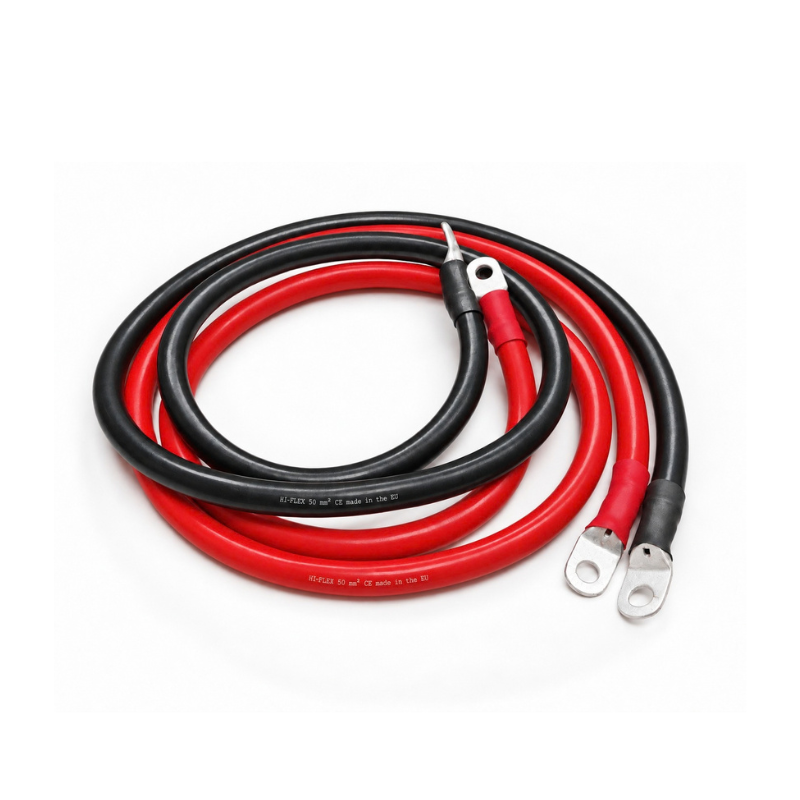

Fogstar Energy 50mm² Battery to Inverter Cable Pair (M8 to M8)
The Fogstar Energy 50mm² Battery to Inverter Cable Pair (M8 to M8) is designed for connecting compatible batteries and busbars to an inverter using compact M8 ring-terminal connections.
Each cable measures 1.5m in length, is fitted with 18mm-wide M8 ring terminals at both ends and is supplied as a positive and negative pair. The compact ring terminals are designed for inverters with narrower battery terminal blocks, where larger battery cables and ring terminals may not fit.
The cable pair can be used as a direct battery-to-inverter connection, as an additional or replacement cable pair, or as the inverter lead from an M8 busbar.
⚠️ Please check before ordering
Most Fogstar Energy batteries are supplied with their own battery-to-inverter cables. This cable pair is intended for additional, replacement or busbar-to-inverter connections.
As well as the M8 stud size, please check that your inverter's battery terminals can accept an 18mm-wide ring terminal. Some Fogstar Energy batteries use Amphenol-style battery connections rather than ring terminals, so please check the terminal connections on both your battery and inverter before ordering.
PRICES EXCLUDE VAT
Couldn't load pickup availability
Register for a trade account to access our latest pricing.
Compatible Inverters
• Fogstar GEN3 3-6K Single-Phase Hybrid Inverter
• LuxPowerTek GEN3-LB-EU 8K Single-Phase Hybrid Inverter
• Fogstar GEN PRO 8-12K Single-Phase Hybrid Inverter
• Fogstar GEN2 14K Single-Phase Hybrid Inverter
• Fogstar SNA 14K Off-Grid Inverter
• Fogstar TriP2-LB-3P 20K Three-Phase Hybrid Inverter
• Previous models: LuxPowerTek GEN2-LB-EU 3.6K, GEN2-LB-EU 6K and SNA 6K
Not Suitable For
• Direct connection to the Fogstar Energy 10kWh, 16.1kWh IP65 or Modular Battery Stack terminals, which use Amphenol connections. These batteries are supplied with Amphenol to M8 cables for connection to the inverter.
• Direct connection to the Fogstar Energy 5.12kWh Rack Battery terminals, which use M6 connections
• Fogstar SNA PRO 6.5K Off-Grid Inverter (M6 battery terminals)
• LuxPowerTek GEN-LB-EU 8K and 10K (M10 battery terminals; see the M8 to M10 cable pair)
Cable Size: 50mm²
Length: 1.5m
Terminals: M8 to M8 ring terminals
Ring Terminal Width: 18mm
Quantity: 2 cables
Configuration: Positive and negative pair
