Fogstar Energy 10kWh 48V Battery + Inverter Bundle
Couldn't load pickup availability
The Fogstar Energy IP65-Rated 10kWh Battery is a high-capacity LiFePO4 energy storage solution designed for residential, commercial and off-grid applications.
Featuring a powerful 200A Battery Management System, integrated low-temperature heating and automatic fire suppression, it delivers reliable performance, advanced safety and dependable operation in even the most demanding environments. The fully sealed IP65 enclosure allows for both indoor and outdoor installation, while scalable parallel expansion ensures the system can grow alongside your energy requirements.
Register for a trade account to access our latest pricing.
3-6kW Hybrid
Advanced 200A Battery Management System
The integrated 200A BMS delivers intelligent monitoring, precise protection and stable performance, helping to maximise battery lifespan and system reliability.
Integrated Fire Suppression
An automatic heat-activated aerosol fire suppression system provides rapid internal protection, enhancing safety in residential and commercial installations.
Integrated Battery Heating
Built-in heating allows safe charging at low temperatures, supporting reliable operation in ambient conditions down to -20°C.
IP65-Rated Construction
The fully sealed enclosure protects against dust, moisture and harsh environmental conditions, making the battery suitable for both indoor and outdoor installations.
User-Friendly LCD Touchscreen
The integrated touchscreen display provides real-time system monitoring, battery information and configuration controls.
High Output Performance
With a 200Ah capacity and up to 200A discharge capability, the battery is designed to support high-demand inverters, whole-home backup systems and off-grid installations.
Scalable Energy Storage
Up to 16 batteries can be connected in parallel, allowing system capacity to expand as energy requirements grow.
Built-In DC Protection
An integrated 250A breaker provides safe isolation and additional protection during maintenance, commissioning and fault conditions.
Wall Mounting Included
Supplied with wall-mounting brackets for secure installation on suitable internal or external walls.
Long-Term Peace of Mind
Backed by a 6-year warranty and supported by 10 years of UK-based customer service.
• Battery Chemistry: LiFePO₄
• Rated Energy: 10kWh
• Nominal Voltage: 51.2V (48V)
• Operating Voltage: 42V – 58.2V
• Capacity: 200Ah
• Cell Configuration: 2P16S
• BMS: Intelligent 200A BMS
Performance
• Cycle Life: 6,000 cycles at 91% DoD
• Maximum Discharge Current: 200A
• Integrated Heating: Yes
• Integrated Fire Suppression: Yes
Physical Specifications
• Dimensions: 550(L) × 175(W) × 904(H)mm
• Weight: 98kg
• Ingress Protection: IP65
• Installation Type: Wall Mounted
Communications
• LCD Touchscreen Display
• CAN Communication
• RS485 Communication
What's Included?
• Fogstar Energy 48V 10kWh Battery
• Wall Mounting Brackets
• 1.5m Positive Power Cable with Amphenol Connector
• 1.5m Negative Power Cable with Amphenol Connector
• 1.5m RS485/CAN Communication Cable
• 1.8m PC Communication Cable
Choose from the GEN3 3-6K or GEN PRO 8-12K Hybrid Inverter to create a grid-connected energy storage system. Ideal for storing solar energy, reducing grid reliance and maximising self-consumption.

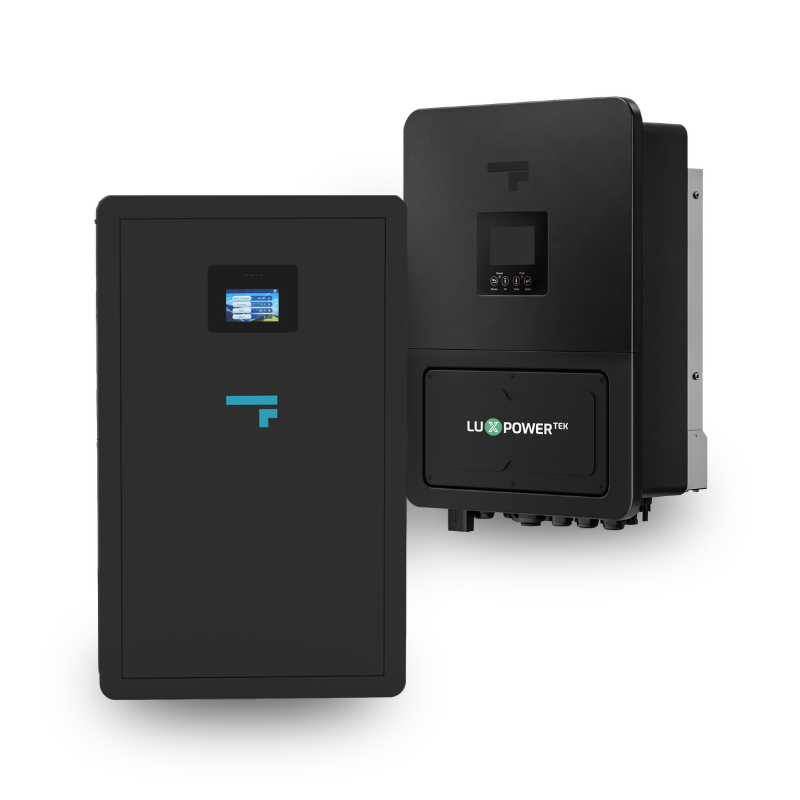

GEN3 3-6K Single-Phase Hybrid Inverter
The Fogstar GEN3-LB-EU 3-6K is a compact single-phase hybrid inverter range designed for residential solar and battery storage systems. Featuring dual MPPTs, generator support, backup power capability and seamless integration with Fogstar 48/51.2V batteries, it provides a flexible solution for installations with different power requirements.
Quick Specs
• 3.6kW, 5kW and 6kW output options
• Dual MPPT inputs
• Up to 12kW PV input
• Up to 125A battery charge/discharge
• 7ms backup switching S&S inverter spec

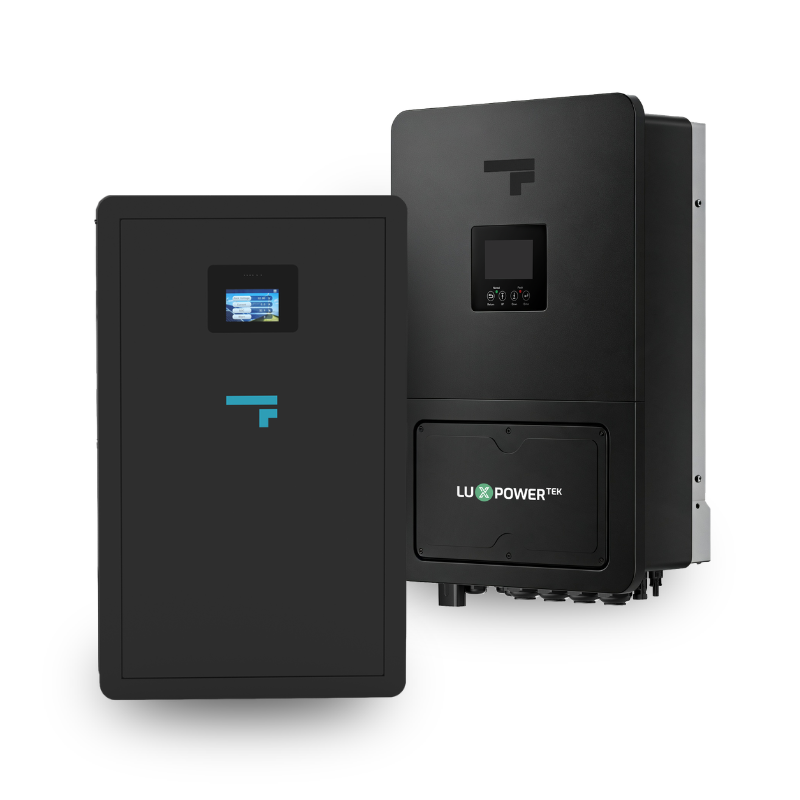

GEN PRO 8-12K Single-Phase Hybrid Inverter
The Fogstar GEN PRO-LB-EU 8-12K is a high-performance single-phase hybrid inverter range designed for larger residential and light-commercial energy storage systems. Featuring triple MPPTs, high-current battery charging, generator support and seamless integration with Fogstar 48/51.2V batteries, it provides increased capacity for demanding solar, storage and backup applications.
Quick Specs
• 8kW, 10kW and 12kW output options
• Triple MPPT inputs
• Up to 21kW PV input
• Up to 270A battery charge/discharge
• 7ms backup switching S&S inverter spec
Choose from the SNA PRO 6.5K or SNA 14K Off-Grid Inverter for properties operating independently from the grid. Ideal for remote locations, workshops, cabins, agricultural sites and off-grid homes.

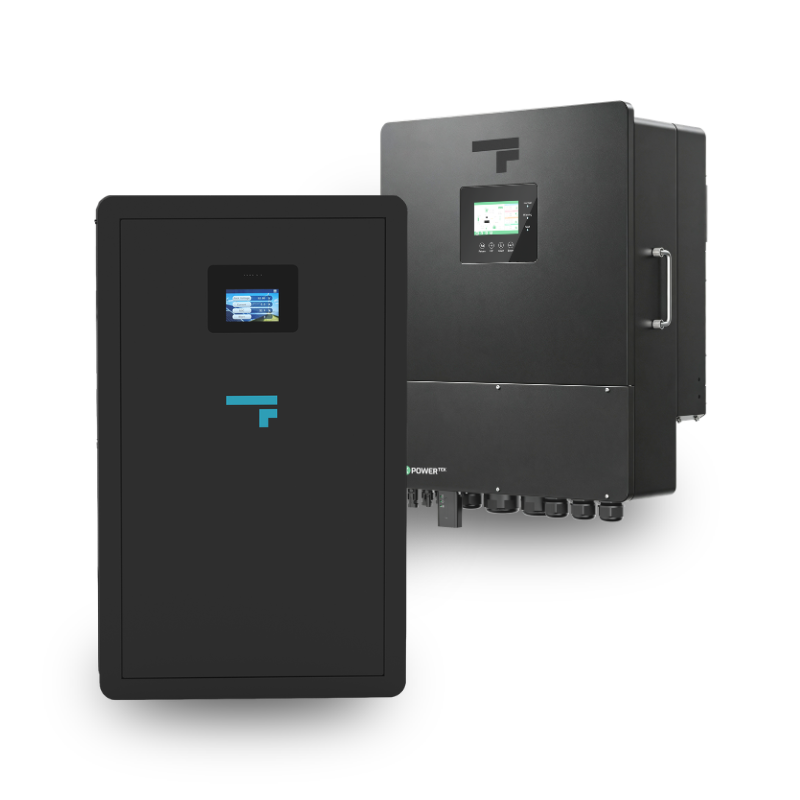

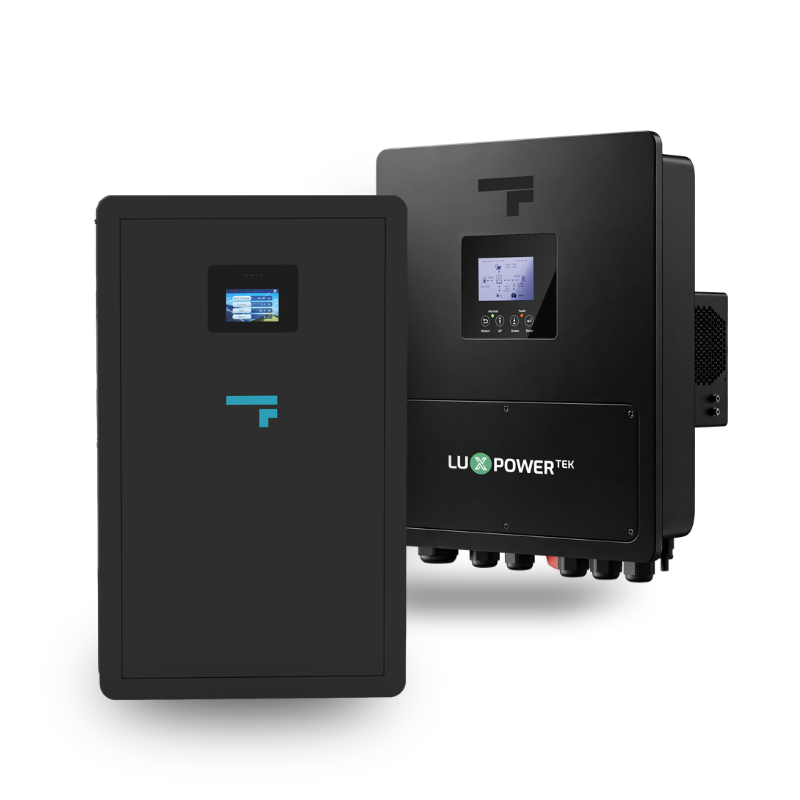

SNA PRO 6.5K Off-Grid Inverter
The Fogstar SNA PRO-EU 6.5K is a compact single-phase off-grid inverter designed for reliable standalone energy systems. Featuring dual MPPTs, generator support and seamless integration with Fogstar 48/51.2V batteries, it provides dependable power for off-grid homes, cabins, workshops and remote installations.
Quick Specs
• 6.5kW AC output
• Dual MPPT inputs
• Up to 12kW PV input
• 135A charge / 140A discharge
• 13kW surge power for 5 seconds S&S inverter spec
➡️ View SNA PRO 6.5K Off-Grid Inverter

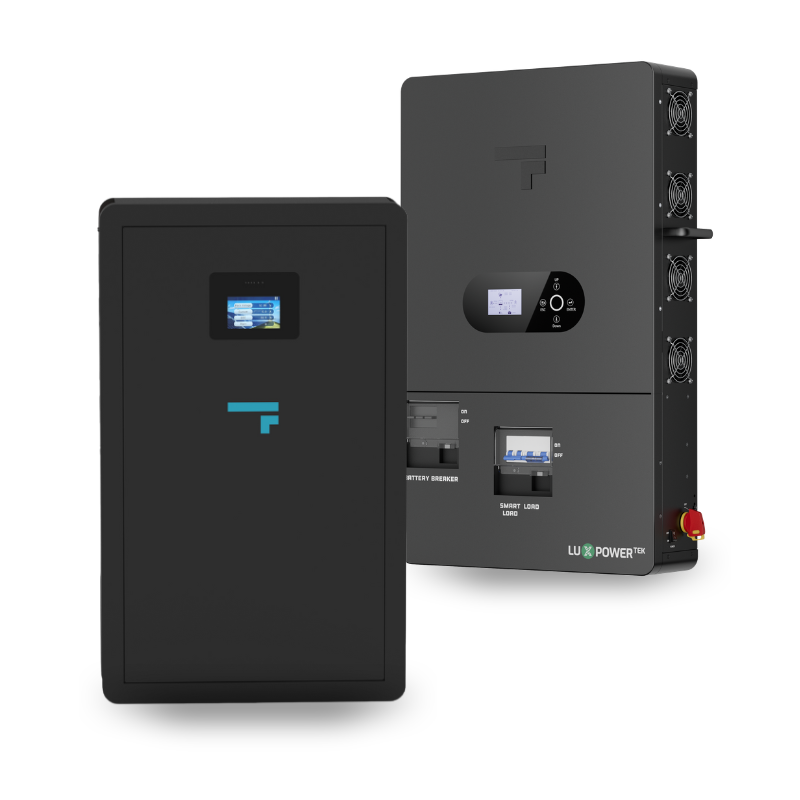

SNA 14K Off-Grid Inverter
The Fogstar SNA 14K is a high-capacity single-phase off-grid inverter designed for larger residential, commercial and agricultural energy systems. Featuring dual MPPTs, dedicated generator support and seamless integration with Fogstar 48/51.2V batteries, it delivers substantial solar and battery capacity for demanding standalone installations.
Quick Specs
• 14kW AC output
• Dual MPPT inputs
• Up to 24kW PV input
• 270A battery charge/discharge
• Up to 15kW generator input S&S inverter spec
