Fogstar Energy 10kWh 51.2V Battery + Inverter Bundle
Couldn't load pickup availability
High-Density Energy Storage, Designed for Everyday Performance
Simply select your preferred Fogstar inverter option above to create a complete energy storage system tailored to your installation.
Whether you're storing solar energy, reducing reliance on the grid, building an off-grid system or planning a larger scalable installation, the Fogstar Energy 10kWh Battery provides a high-performance foundation for residential and light-commercial energy storage.
Register for a trade account to access our latest pricing.
3.6kW Hybrid
Advanced 200A Battery Management System
The integrated 200A BMS delivers intelligent monitoring, precise protection and stable performance, helping to maximise battery lifespan and system reliability.
Integrated Fire Suppression
An automatic heat-activated aerosol fire suppression system provides rapid internal protection, enhancing safety in residential and commercial installations.
Integrated Battery Heating
Built-in heating allows safe charging at low temperatures, supporting reliable operation in ambient conditions down to -20°C.
IP65-Rated Construction
The fully sealed enclosure protects against dust, moisture and harsh environmental conditions, making the battery suitable for both indoor and outdoor installations.
User-Friendly LCD Touchscreen
The integrated touchscreen display provides real-time system monitoring, battery information and configuration controls.
High Output Performance
With a 200Ah capacity and up to 200A discharge capability, the battery is designed to support high-demand inverters, whole-home backup systems and off-grid installations.
Scalable Energy Storage
Up to 16 batteries can be connected in parallel, allowing system capacity to expand as energy requirements grow.
Built-In DC Protection
An integrated 250A breaker provides safe isolation and additional protection during maintenance, commissioning and fault conditions.
Wall Mounting Included
Supplied with wall-mounting brackets for secure installation on suitable internal or external walls.
Long-Term Peace of Mind
Backed by a 6-year warranty and supported by 10 years of UK-based customer service.
• Battery Chemistry: LiFePO₄
• Rated Energy: 10kWh
• Nominal Voltage: 51.2V (48V)
• Operating Voltage: 42V – 58.2V
• Capacity: 200Ah
• Cell Configuration: 2P16S
• BMS: Intelligent 200A BMS
Performance
• Cycle Life: 6,000 cycles at 91% DoD
• Maximum Discharge Current: 200A
• Integrated Heating: Yes
• Integrated Fire Suppression: Yes
Physical Specifications
• Dimensions: 550(L) × 175(W) × 904(H)mm
• Weight: 98kg
• Ingress Protection: IP65
• Installation Type: Wall Mounted
Communications
• LCD Touchscreen Display
• CAN Communication
• RS485 Communication
What's Included?
• Fogstar Energy 48V 10kWh Battery
• Wall Mounting Brackets
• 1.5m Positive Power Cable with Amphenol Connector
• 1.5m Negative Power Cable with Amphenol Connector
• 1.5m RS485/CAN Communication Cable
• 1.8m PC Communication Cable
Choose from a 3.6kW or 10kW Hybrid Inverter to create a grid-connected energy storage system. Ideal for storing solar energy, reducing grid reliance and maximising self-consumption.

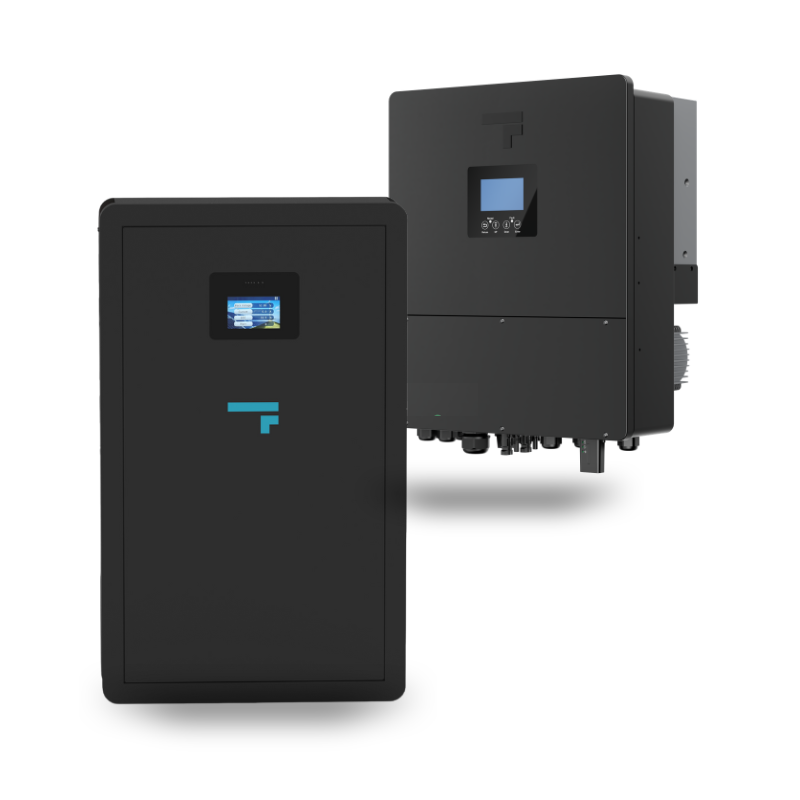

3.6kW Hybrid Inverter
The Fogstar GEN2-LB-EU 3.6K is a compact single-phase hybrid inverter designed for residential solar and battery storage systems. Featuring dual MPPTs, backup power capability and seamless integration with Fogstar 48/51.2V batteries, it is ideal for smaller installations and essential backup applications.
Quick Specs
• 3.6kW AC output
• Dual MPPT inputs
• Up to 7kW PV input
• 80A battery charge/discharge
• On-grid and off-grid operation

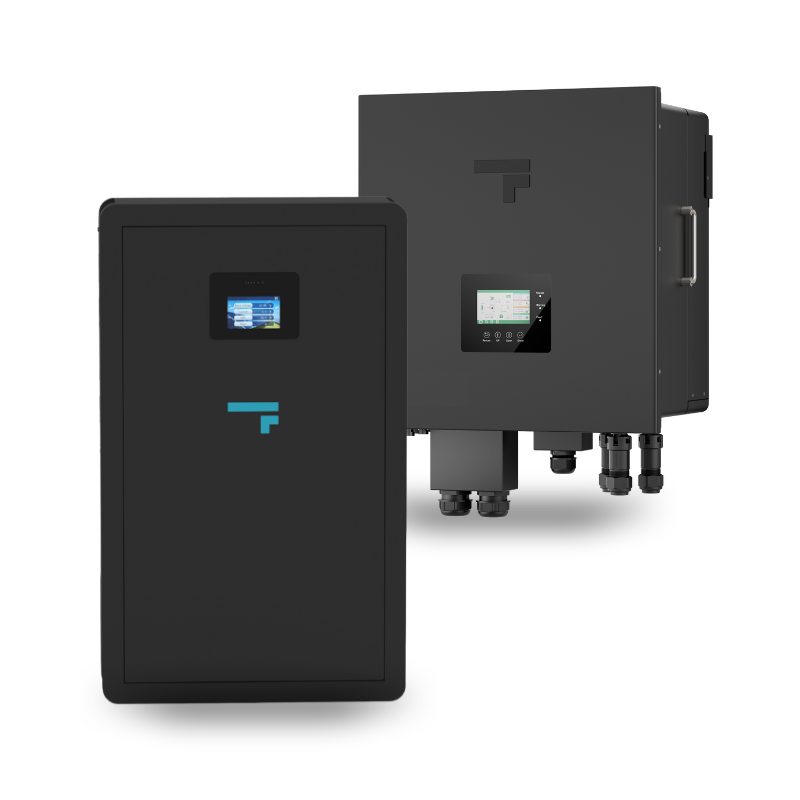

10kW Hybrid Inverter
The Fogstar GEN-LB-EU 10K is a high-performance single-phase hybrid inverter designed for larger residential and light commercial energy storage systems. Featuring dual MPPTs, generator support and seamless integration with Fogstar 48/51.2V batteries, it delivers exceptional flexibility for solar self-consumption, backup power and off-grid applications.
Quick Specs
• 10kW AC output
• Dual MPPT inputs
• Up to 15kW PV input
• 208A battery charge/discharge
• On-grid and off-grid operation
Choose from a 6kW or 14kW Off-Grid Inverter for properties operating independently from the grid. Perfect for remote locations, workshops, cabins and off-grid homes.

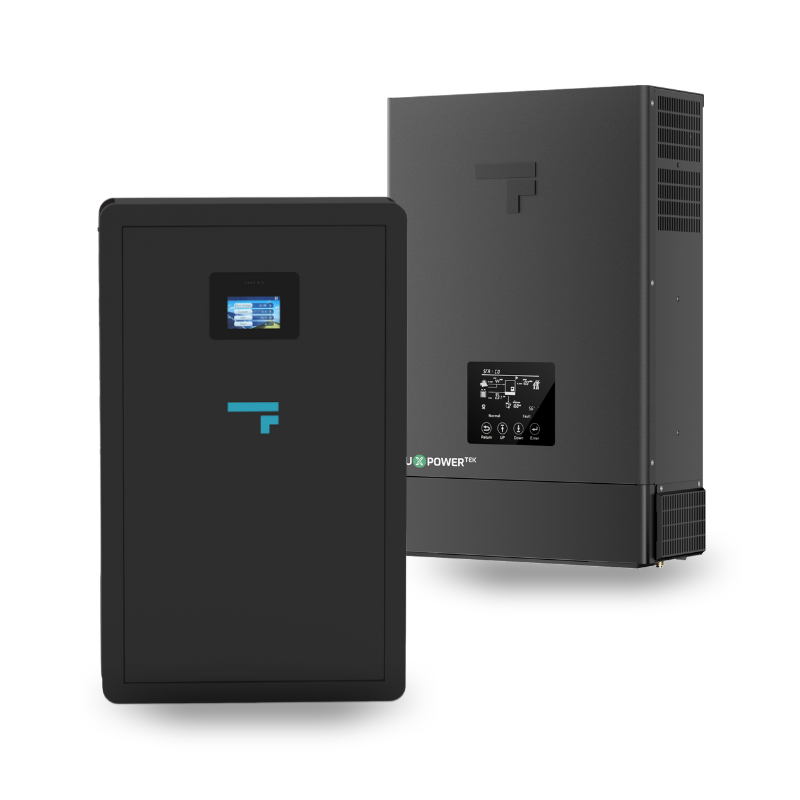

6kW Off-Grid Inverter
The Fogstar SNA 6K is a powerful single-phase off-grid inverter designed for reliable energy storage and backup power applications. Featuring dual MPPTs, generator support and seamless integration with Fogstar 48/51.2V batteries, it is ideal for off-grid homes, cabins and remote energy systems.
Quick Specs
• 6kW AC output
• Dual MPPT inputs
• Up to 9.6kW PV input
• 140A battery charge/discharge
• Parallel capability up to 18 units
➡️ View SNA 6K Off-Grid Inverter

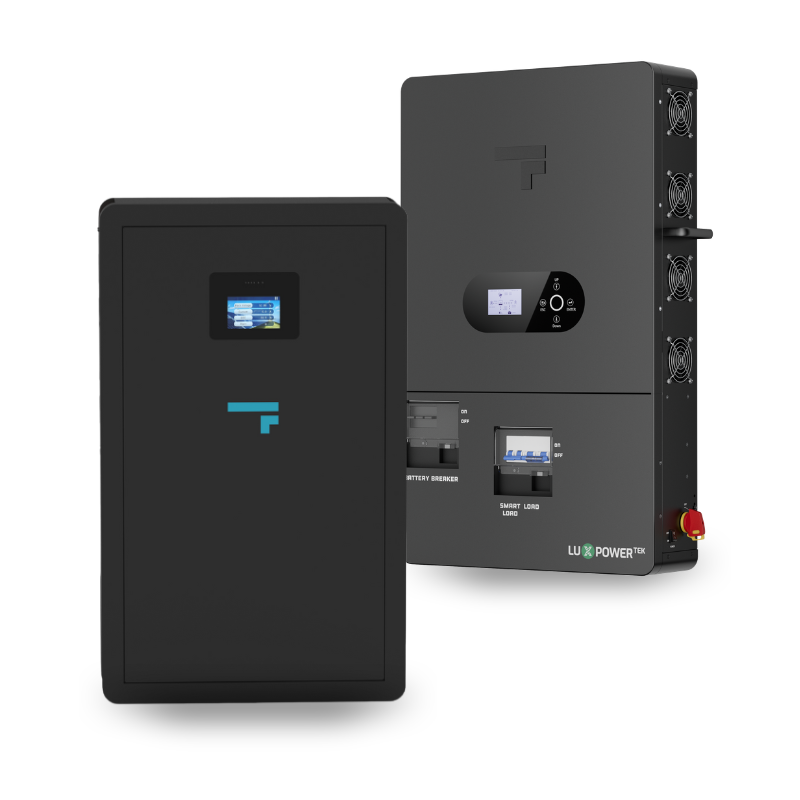

14kW Off-Grid Inverter
The Fogstar SNA 14K is a high-capacity single-phase off-grid inverter designed for larger residential, commercial and agricultural energy systems. Featuring dual MPPTs, generator support and seamless integration with Fogstar 48/51.2V batteries, it delivers exceptional performance for high-demand off-grid and backup power applications.
Quick Specs
• Up to 14kW AC output
• Dual MPPT inputs
• Up to 24kW PV input
• 250A battery charge/discharge
• Parallel capability up to 16 units
