Fogstar Energy 16.1kWh 48V Battery + Inverter Bundle
Couldn't load pickup availability
The Fogstar Energy IP65-Rated 16.1kWh Battery is a high-capacity lithium energy storage solution designed for residential, commercial and off-grid applications.
Built around premium Grade A EVE cells, a powerful 200A PACE Battery Management System, integrated battery heating and automatic fire suppression, it delivers exceptional performance, advanced safety and dependable long-term operation. The fully sealed IP65-rated enclosure allows for both indoor and outdoor installation, while scalable expansion ensures the system can grow alongside your energy requirements.
Register for a trade account to access our latest pricing.
Premium Grade A EVE Cells
Built using 16 Grade A EVE MB31 LiFePO₄ cells for exceptional reliability, safety and long-term performance.
IP65-Rated Outdoor Protection
Fully sealed IP65-rated enclosure protects internal components from dust ingress and water jets, making it suitable for both indoor and outdoor installation.
Integrated Fire Suppression
Automatic aerosol fire suppression system activates if internal temperatures reach critical levels, helping to suppress fire at the source without maintenance or user intervention.
Intelligent Battery Heating
Integrated heating automatically activates in cold conditions, enabling safe charging at 0°C and reliable operation in ambient temperatures as low as -20°C.
Scalable Energy Storage
Supports up to 15 batteries in parallel, allowing system capacity to expand as energy requirements increase.
Advanced Battery Management
Industry-leading PACE 200A Battery Management System provides intelligent monitoring, protection and communications.
JK Active Balancing
Integrated 2A JK Active Balancer helps optimise cell balance, improve efficiency and maximise long-term battery performance.
Built-In DC Protection
Integrated 250A DC breaker provides safe system isolation and critical fault protection.
Touchscreen Monitoring
4.3-inch TFT LCD touchscreen display provides intuitive access to battery status, diagnostics and system configuration.
Easy Installation & Mobility
Integrated wheels and supplied M8 connection hardware simplify transportation, positioning and installation.
10-Year Warranty
Backed by a comprehensive 10-year warranty for complete peace of mind.
• Battery Chemistry: LiFePO₄
• Total Energy: 16.08kWh
• Nominal Voltage: 51.2V
• Capacity: 314Ah
• Cell Configuration: 16S1P
• Cell Model: EVE MB31 Grade A
• BMS: PACE 200A
• Active Balancer: JK 2A Active Balancer
Performance
• Maximum Continuous Discharge Current: 200A
• Cycle Life: Up to 8,000 Cycles @ 80% DoD
• Heating Activation Temperature: Below 5°C
• Safe Charging Temperature: 0°C and above
• Minimum Operating Temperature: -20°C
Physical Specifications
• IP Rating: IP65
• Dimensions: 500(L) × 232(W) × 915(H)mm
• Weight: 128.8kg
• Integrated Transport Wheels
Communications
• 4.3" TFT LCD Touchscreen Display
• CAN Communication
• RS485 Communication
What's Included?
• Fogstar Energy IP65-Rated 16.1kWh Battery
• Integrated 250A DC Breaker
• M8 Ring Terminal Connection Hardware
• Terminal Protective Covers
Installation Notes
• Suitable for indoor and outdoor installation.
• Always connect all negative conductors before connecting positive conductors.
• Verify the correct inverter communication protocol has been selected prior to commissioning.
• Refer to inverter manufacturer guidelines for system-specific installation requirements.
Choose from the GEN3 3-6K or GEN PRO 8-12K Hybrid Inverter to create a grid-connected energy storage system. Ideal for storing solar energy, reducing grid reliance and maximising self-consumption.

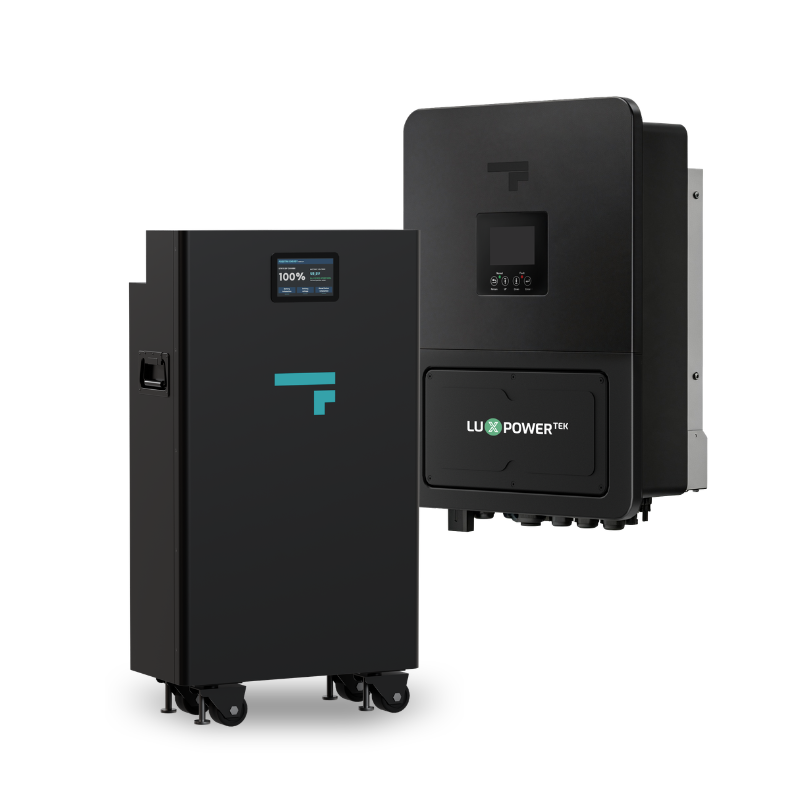

GEN3 3-6K Single-Phase Hybrid Inverter
The Fogstar GEN3-LB-EU 3-6K is a compact single-phase hybrid inverter range designed for residential solar and battery storage systems. Featuring dual MPPTs, generator support, backup power capability and seamless integration with Fogstar 48/51.2V batteries, it provides a flexible solution for installations with different power requirements.
Quick Specs
• 3.6kW, 5kW and 6kW output options
• Dual MPPT inputs
• Up to 12kW PV input
• Up to 125A battery charge/discharge
• 7ms backup switching S&S inverter spec

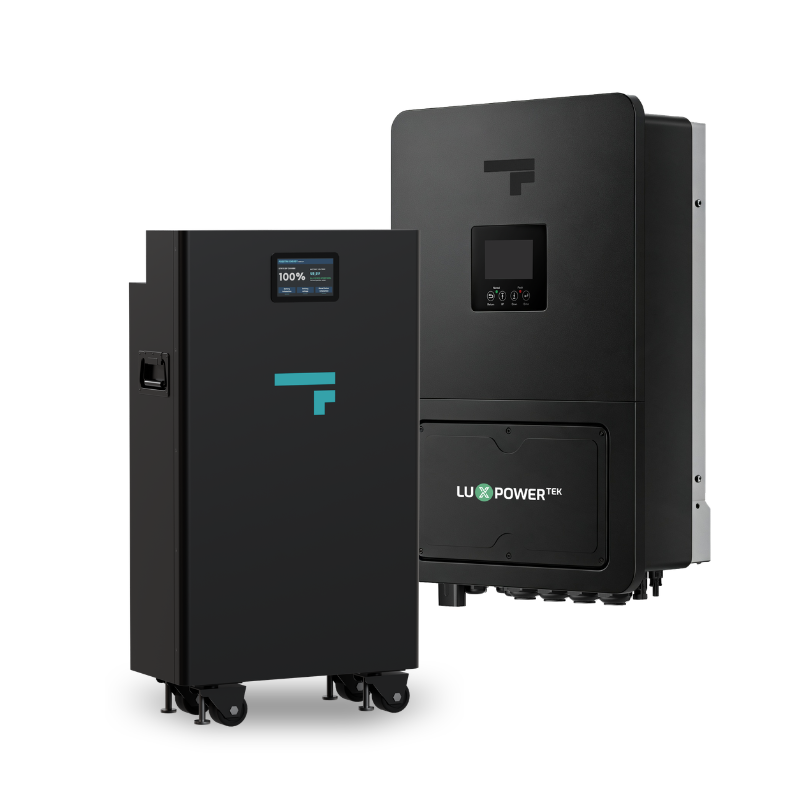

GEN PRO 8-12K Single-Phase Hybrid Inverter
The Fogstar GEN PRO-LB-EU 8-12K is a high-performance single-phase hybrid inverter range designed for larger residential and light-commercial energy storage systems. Featuring triple MPPTs, high-current battery charging, generator support and seamless integration with Fogstar 48/51.2V batteries, it provides increased capacity for demanding solar, storage and backup applications.
Quick Specs
• 8kW, 10kW and 12kW output options
• Triple MPPT inputs
• Up to 21kW PV input
• Up to 270A battery charge/discharge
• 7ms backup switching S&S inverter spec
Choose from the SNA PRO 6.5K or SNA 14K Off-Grid Inverter for properties operating independently from the grid. Ideal for remote locations, workshops, cabins, agricultural sites and off-grid homes.

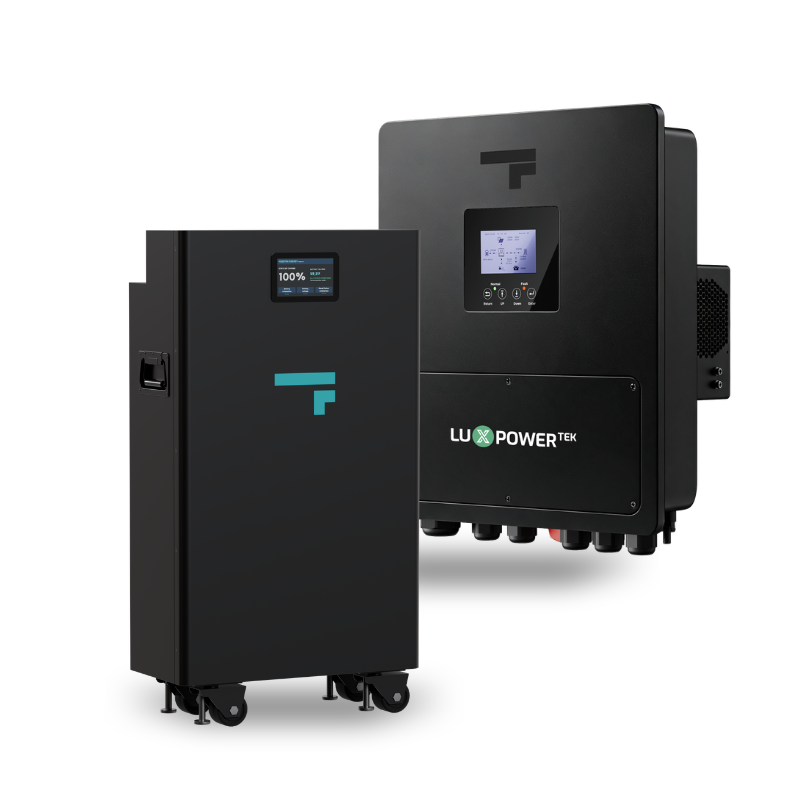

SNA PRO 6.5K Off-Grid Inverter
The Fogstar SNA PRO-EU 6.5K is a compact single-phase off-grid inverter designed for reliable standalone energy systems. Featuring dual MPPTs, generator support and seamless integration with Fogstar 48/51.2V batteries, it provides dependable power for off-grid homes, cabins, workshops and remote installations.
Quick Specs
• 6.5kW AC output
• Dual MPPT inputs
• Up to 12kW PV input
• 135A charge / 140A discharge
• 13kW surge power for 5 seconds S&S inverter spec
➡️ View SNA PRO 6.5K Off-Grid Inverter

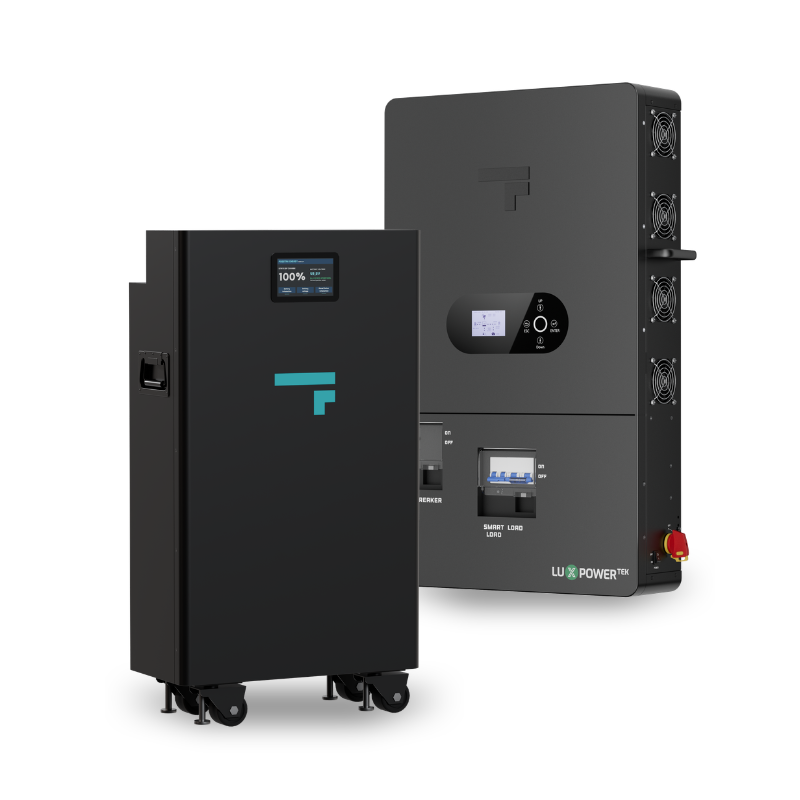

SNA 14K Off-Grid Inverter
The Fogstar SNA 14K is a high-capacity single-phase off-grid inverter designed for larger residential, commercial and agricultural energy systems. Featuring dual MPPTs, dedicated generator support and seamless integration with Fogstar 48/51.2V batteries, it delivers substantial solar and battery capacity for demanding standalone installations.
Quick Specs
• 14kW AC output
• Dual MPPT inputs
• Up to 24kW PV input
• 270A battery charge/discharge
• Up to 15kW generator input S&S inverter spec
Planning a larger installation? Pair your battery with our 20kW Three-Phase Hybrid Inverter, ideal for commercial properties, agricultural applications and scalable energy storage systems.

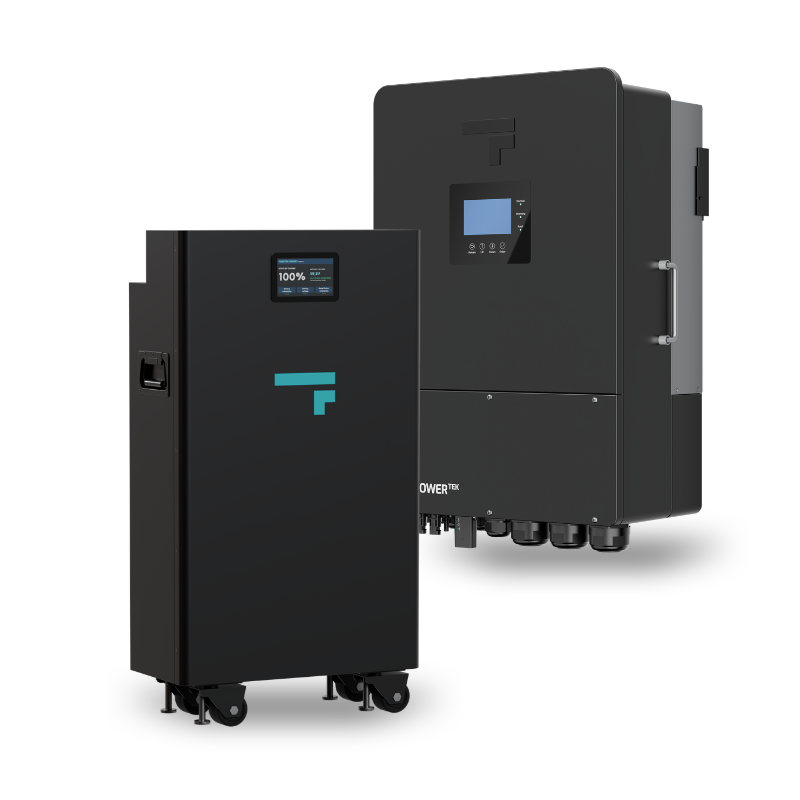

20kW Three-Phase Hybrid Inverter
The Luxpower TriP2-LB-3P 20K is a high-capacity three-phase hybrid inverter designed for residential, commercial and agricultural energy systems. Featuring triple MPPTs, generator support and seamless integration with Fogstar 48/51.2V batteries, it delivers flexible and efficient energy management for larger installations with demanding power requirements.
Quick Specs
• 20kW three-phase AC output
• 3 independent MPPT inputs
• Up to 30kW PV input
• Up to 250A battery charge/discharge
• Parallel capability up to 10 units
