Fogstar Energy 16.1kWh ECO 48V Battery + Inverter Bundle
Couldn't load pickup availability
The Fogstar Energy 16.1kWh ECO Battery is a fully assembled, high-capacity lithium energy storage solution designed for residential, commercial and off-grid applications.
Built around a powerful 200A Battery Management System, integrated battery heating and automatic fire suppression, it delivers dependable performance, enhanced safety and long-term reliability in demanding environments. Designed for seamless integration with leading inverter brands and scalable energy storage systems, the Fogstar Energy 16.1kWh ECO Battery provides a cost-effective foundation for solar energy storage, backup power and off-grid installations.
Fully Assembled & Ready to Install
Delivered fully assembled and ready for installation, reducing setup time and simplifying deployment.
Integrated Fire Suppression
Built-in heat-activated aerosol fire suppression system provides an additional layer of protection within the battery enclosure.
Cold-Weather Ready
Integrated battery heating allows charging in temperatures as low as -10°C, helping maintain performance during colder conditions.
Scalable Energy Storage
Supports up to 16 batteries in parallel, allowing systems to scale up to 257.6kWh of total storage capacity.
Advanced Battery Management
Features a high-performance 200A Battery Management System paired with a JK 2A Active Balancer for intelligent protection, monitoring and cell optimisation.
Smart Communications
Integrated CAN and RS485 communications enable seamless inverter integration and real-time battery monitoring.
Touchscreen Monitoring
Built-in LCD touchscreen display provides convenient access to battery status, system information and configuration settings.
Fogstar Support
Backed by a 6-year manufacturer warranty and supported by 10 years of Fogstar customer support.
• Battery Chemistry: LiFePO₄
• Rated Energy: 16.1kWh
• Nominal Voltage: 51.2V
• Operating Voltage Range: 42V – 58.2V
• Capacity: 314Ah
• Cell Configuration: 1P16S
• BMS: 200A Battery Management System
• Active Balancer: JK 2A Active Balancer
Performance
• Rated Charge Current: 100A
• Rated Discharge Current: 200A
• Maximum Continuous Discharge Current: 200A
• Cycle Life: Up to 8,000 Cycles @ 91% DoD
• Charge Temperature Range: -10°C to 40°C
• Discharge Temperature Range: -20°C to 40°C
Physical Specifications
• Dimensions: 898.5(H) × 415(L) × 260(W)mm
• Weight: 119.5kg ±3kg
Communications
• LCD Touchscreen Display
• CAN Communication
• RS485 Communication
Inverter Compatibility
• Victron
• Sunsynk
• Solis
• Luxpower
• Voltacon
• Additional compatible low-voltage inverter platforms
What's Included?
• Fogstar Energy 16.1kWh Battery
• 1.5m 50mm² Positive Battery Cable with M8 Ring Lug
• 1.5m 50mm² Negative Battery Cable with M8 Ring Lug
• 1.5m Communication Cable
Installation Notes
• Always connect all negative conductors before connecting positive conductors.
• Supplied cables are suitable for most installations.
• Some system configurations may require connection via an external busbar and manufacturer-specific inverter cables.
Choose from the GEN3 3-6K or GEN PRO 8-12K Hybrid Inverter to create a grid-connected energy storage system. Ideal for storing solar energy, reducing grid reliance and maximising self-consumption.

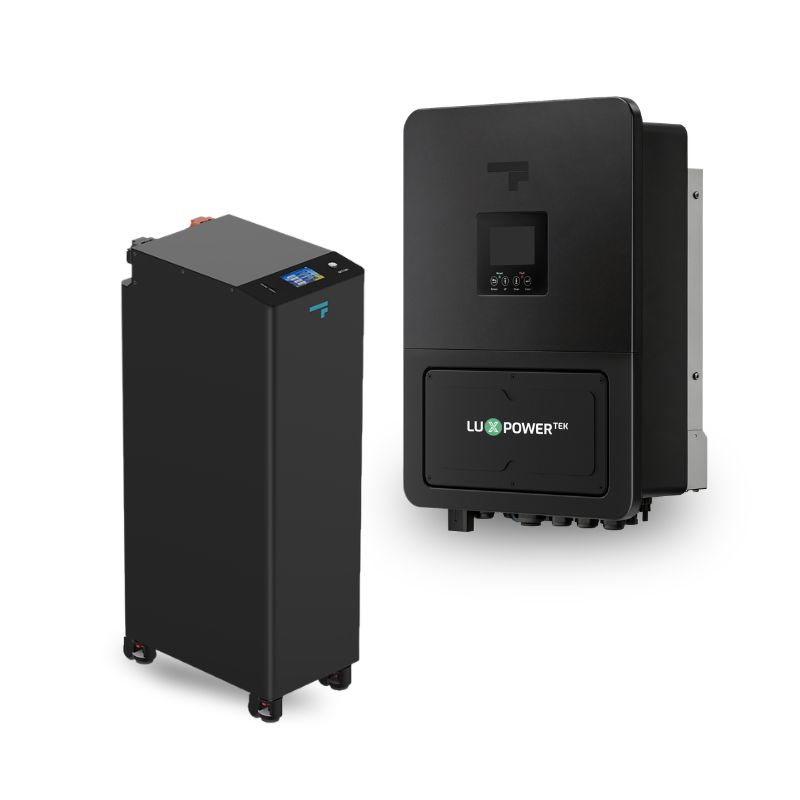

GEN3 3-6K Single-Phase Hybrid Inverter
The Fogstar GEN3-LB-EU 3-6K is a compact single-phase hybrid inverter range designed for residential solar and battery storage systems. Featuring dual MPPTs, generator support, backup power capability and seamless integration with Fogstar 48/51.2V batteries, it provides a flexible solution for installations with different power requirements.
Quick Specs
• 3.6kW, 5kW and 6kW output options
• Dual MPPT inputs
• Up to 12kW PV input
• Up to 125A battery charge/discharge
• 7ms backup switching S&S inverter spec

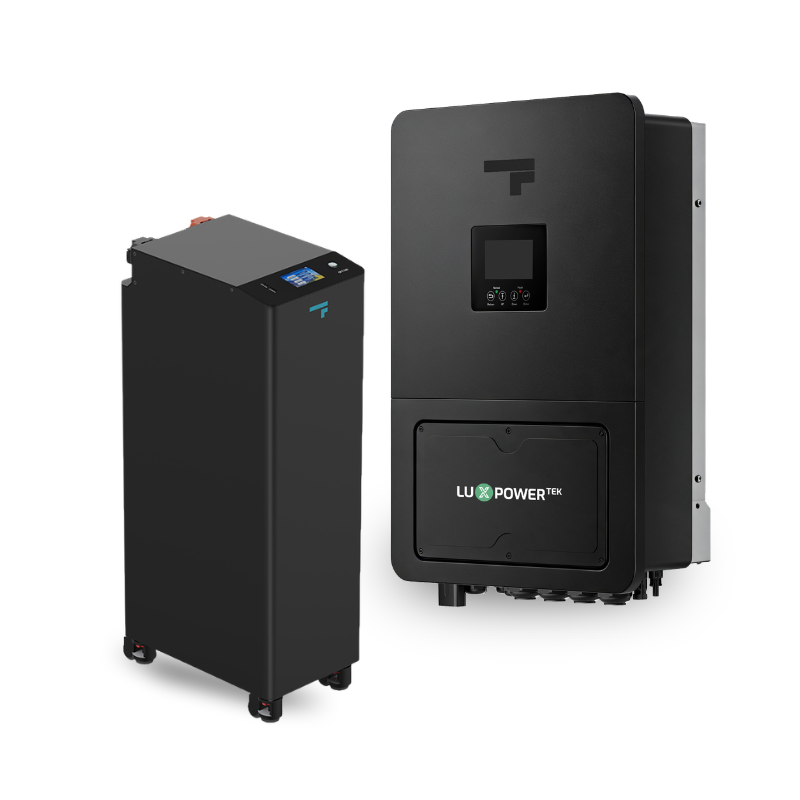

GEN PRO 8-12K Single-Phase Hybrid Inverter
The Fogstar GEN PRO-LB-EU 8-12K is a high-performance single-phase hybrid inverter range designed for larger residential and light-commercial energy storage systems. Featuring triple MPPTs, high-current battery charging, generator support and seamless integration with Fogstar 48/51.2V batteries, it provides increased capacity for demanding solar, storage and backup applications.
Quick Specs
• 8kW, 10kW and 12kW output options
• Triple MPPT inputs
• Up to 21kW PV input
• Up to 270A battery charge/discharge
• 7ms backup switching S&S inverter spec
Choose from the SNA PRO 6.5K or SNA 14K Off-Grid Inverter for properties operating independently from the grid. Ideal for remote locations, workshops, cabins, agricultural sites and off-grid homes.

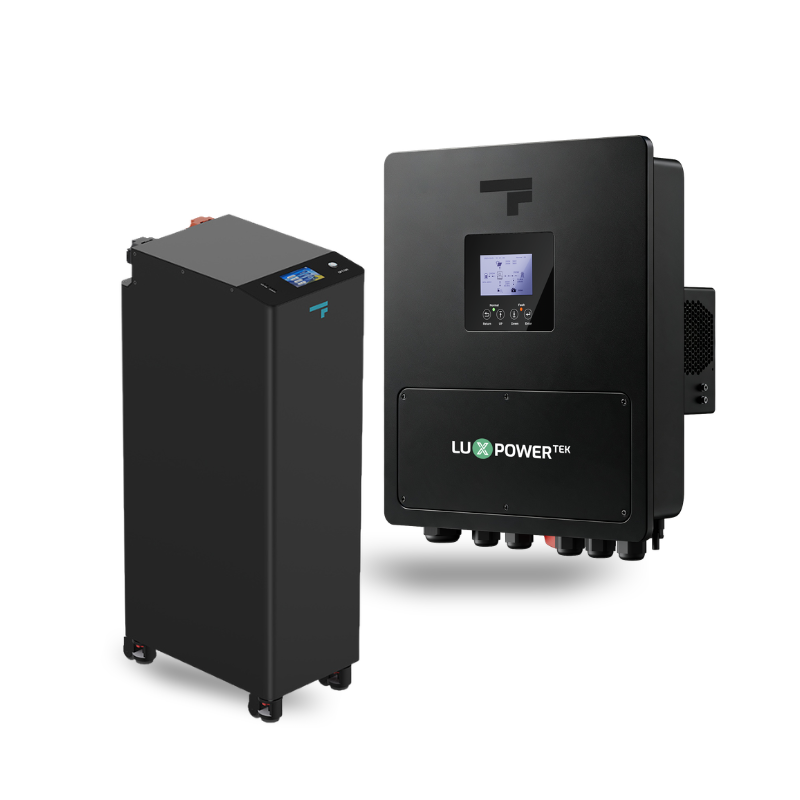

SNA PRO 6.5K Off-Grid Inverter
The Fogstar SNA PRO-EU 6.5K is a compact single-phase off-grid inverter designed for reliable standalone energy systems. Featuring dual MPPTs, generator support and seamless integration with Fogstar 48/51.2V batteries, it provides dependable power for off-grid homes, cabins, workshops and remote installations.
Quick Specs
• 6.5kW AC output
• Dual MPPT inputs
• Up to 12kW PV input
• 135A charge / 140A discharge
• 13kW surge power for 5 seconds S&S inverter spec
➡️ View SNA PRO 6.5K Off-Grid Inverter

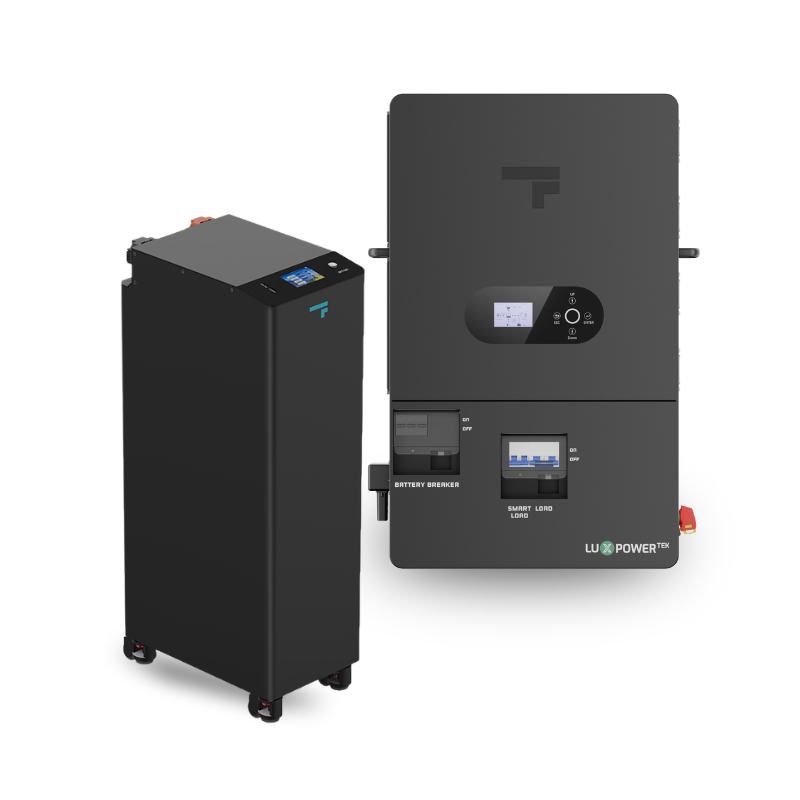

SNA 14K Off-Grid Inverter
The Fogstar SNA 14K is a high-capacity single-phase off-grid inverter designed for larger residential, commercial and agricultural energy systems. Featuring dual MPPTs, dedicated generator support and seamless integration with Fogstar 48/51.2V batteries, it delivers substantial solar and battery capacity for demanding standalone installations.
Quick Specs
• 14kW AC output
• Dual MPPT inputs
• Up to 24kW PV input
• 270A battery charge/discharge
• Up to 15kW generator input S&S inverter spec
Planning a larger installation? Pair your battery with our 20kW Three-Phase Hybrid Inverter, ideal for commercial properties, agricultural applications and scalable energy storage systems.

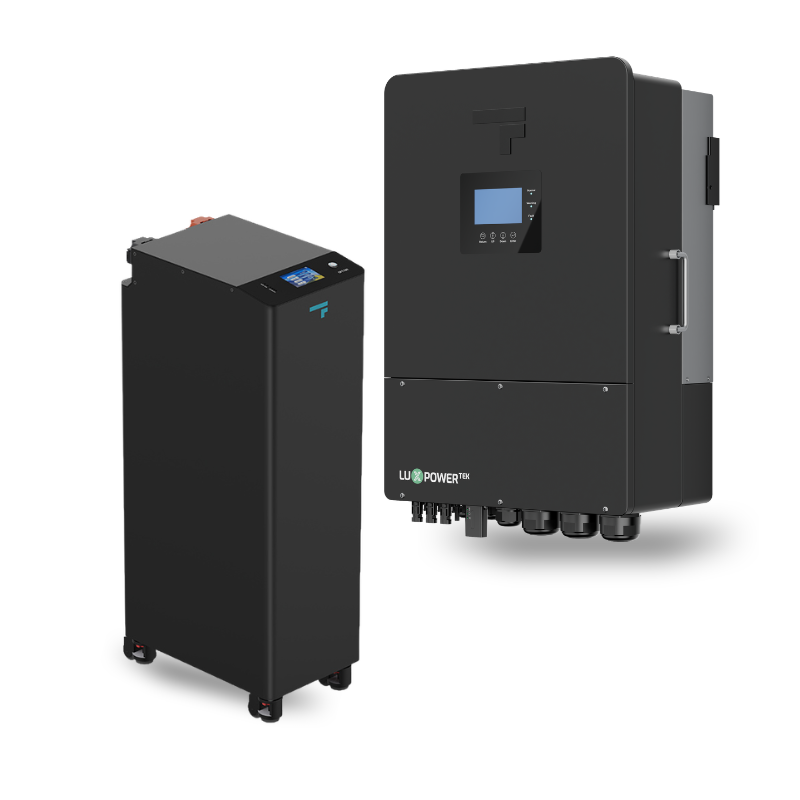

20kW Three-Phase Hybrid Inverter
The Luxpower TriP2-LB-3P 20K is a high-capacity three-phase hybrid inverter designed for residential, commercial and agricultural energy systems. Featuring triple MPPTs, generator support and seamless integration with Fogstar 48/51.2V batteries, it delivers flexible and efficient energy management for larger installations with demanding power requirements.
Quick Specs
• 20kW three-phase AC output
• 3 independent MPPT inputs
• Up to 30kW PV input
• Up to 250A battery charge/discharge
• Parallel capability up to 10 units
Get in touch
We're here to help
Our team are here to make the installation process simple. Please get in touch with any questions - we're always happy to help.
