Fogstar Energy 32kWh 48V Battery + Inverter Bundle
Couldn't load pickup availability
The Fogstar Energy 32kWh Battery is a high-capacity lithium energy storage solution designed for residential, commercial and off-grid applications.
Built around a powerful 300A Seplos Battery Management System, integrated battery heating and automatic fire suppression, it delivers exceptional performance, enhanced safety and dependable long-term operation. Designed for demanding energy storage applications, the Fogstar Energy 32kWh Battery provides a scalable and cost-effective solution for solar energy storage, backup power and large off-grid systems.
High-Capacity Energy Storage
With 32kWh of usable storage capacity in a single enclosure, the Fogstar Energy 32kWh Battery is designed for larger residential systems, commercial installations and demanding off-grid applications.
Advanced Battery Management
Features a high-performance 300A Battery Management System (BMS) paired with a JK 2A Active Balancer for intelligent monitoring, protection and cell optimisation.
Integrated Fire Suppression
Built-in heat-activated aerosol fire suppression system provides rapid internal response to thermal events, helping to enhance system safety without the need for additional external equipment.
Cold-Weather Ready
Integrated battery heating enables safe charging down to -10°C, helping to maintain battery performance and protect cell health during colder conditions.
Scalable Energy Storage
Supports up to 16 batteries in parallel, allowing total system capacity to expand as energy requirements grow.
JK Active Balancing
Integrated 2A active balancing continuously optimises cell performance, helping to maximise efficiency, longevity and overall battery health.
Smart Communications
Integrated communications allow seamless inverter integration, real-time monitoring and simplified system configuration.
Touchscreen Monitoring
Built-in LCD touchscreen display provides convenient access to battery status, diagnostics and system information.
Integrated Safety Protection
Features a heavy-duty 375A DC breaker and dedicated On/Off isolation switch for safe operation, maintenance and system protection.
Heavy-Duty Construction
Robust enclosure incorporates integrated wheels and lifting points, making transportation and installation easier despite its high-capacity design.
6-Year Warranty
Backed by a comprehensive 6-year manufacturer warranty and supported by 10 years of Fogstar customer service.
• Battery Chemistry: LiFePO₄
• Rated Energy: 32kWh
• Nominal Voltage: 51.2V
• Operating Voltage Range: 42V – 58.2V
• Capacity: 628Ah
• Cell Configuration: 16S2P
• BMS: Seplos 300A
• Active Balancer: JK 2A Active Balancer
Performance
• Maximum Continuous Discharge Current: 300A
• Cycle Life: Up to 8,000 Cycles @ 91% DoD
• Charge Temperature Range: -10°C to 40°C
• Discharge Temperature Range: -20°C to 40°C
• Integrated Battery Heating
Physical Specifications
• Dimensions: 538(L) × 416(W) × 900(H)mm
• Weight: 233kg
• Integrated Wheels
• Integrated Lifting System
• Integrated 375A DC Breaker
• Dedicated On/Off Isolation Switch
• Integrated Fire Suppression System
Communications
• LCD Touchscreen Display
• CAN Communication
• RS485 Communication
What's Included?
• Fogstar Energy 48V 32kWh Battery
• 1.5m 95mm² Positive Battery Cable with M8 Ring Lug
• 1.5m 95mm² Negative Battery Cable with M8 Ring Lug
• 1.5m Communication Cable
Installation Notes
• Always connect all negative conductors before connecting positive conductors.
• Supplied cables are suitable for most installations.
• Some system configurations may require connection via an external busbar and manufacturer-specific inverter cables.
Choose from the GEN3 3-6K or GEN PRO 8-12K Hybrid Inverter to create a grid-connected energy storage system. Ideal for storing solar energy, reducing grid reliance and maximising self-consumption.

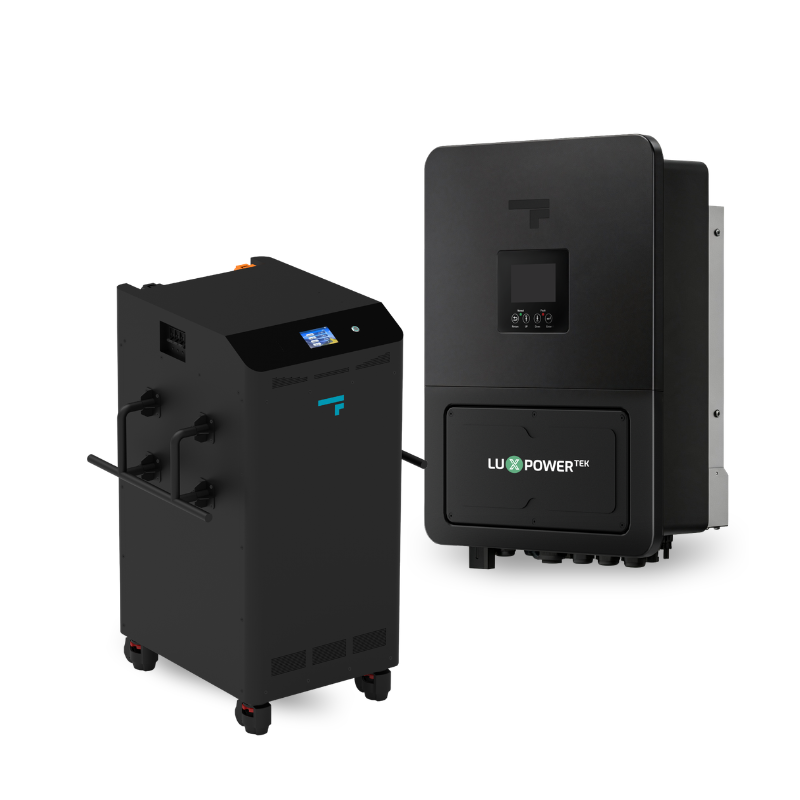

GEN3 3-6K Single-Phase Hybrid Inverter
The Fogstar GEN3-LB-EU 3-6K is a compact single-phase hybrid inverter range designed for residential solar and battery storage systems. Featuring dual MPPTs, generator support, backup power capability and seamless integration with Fogstar 48/51.2V batteries, it provides a flexible solution for installations with different power requirements.
Quick Specs
• 3.6kW, 5kW and 6kW output options
• Dual MPPT inputs
• Up to 12kW PV input
• Up to 125A battery charge/discharge
• 7ms backup switching S&S inverter spec

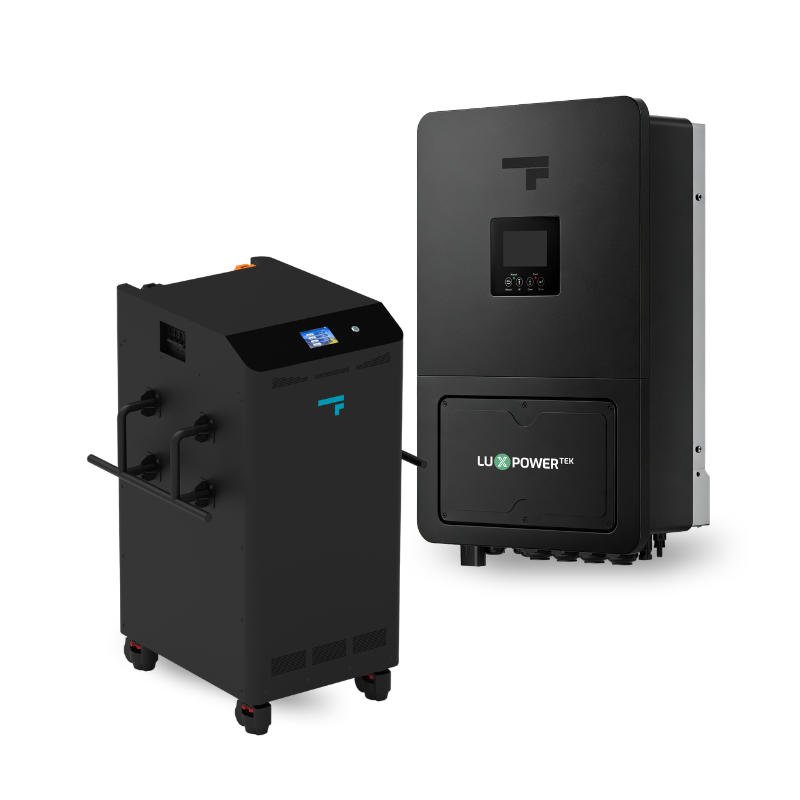

GEN PRO 8-12K Single-Phase Hybrid Inverter
The Fogstar GEN PRO-LB-EU 8-12K is a high-performance single-phase hybrid inverter range designed for larger residential and light-commercial energy storage systems. Featuring triple MPPTs, high-current battery charging, generator support and seamless integration with Fogstar 48/51.2V batteries, it provides increased capacity for demanding solar, storage and backup applications.
Quick Specs
• 8kW, 10kW and 12kW output options
• Triple MPPT inputs
• Up to 21kW PV input
• Up to 270A battery charge/discharge
• 7ms backup switching S&S inverter spec
Choose from the SNA PRO 6.5K or SNA 14K Off-Grid Inverter for properties operating independently from the grid. Ideal for remote locations, workshops, cabins, agricultural sites and off-grid homes.

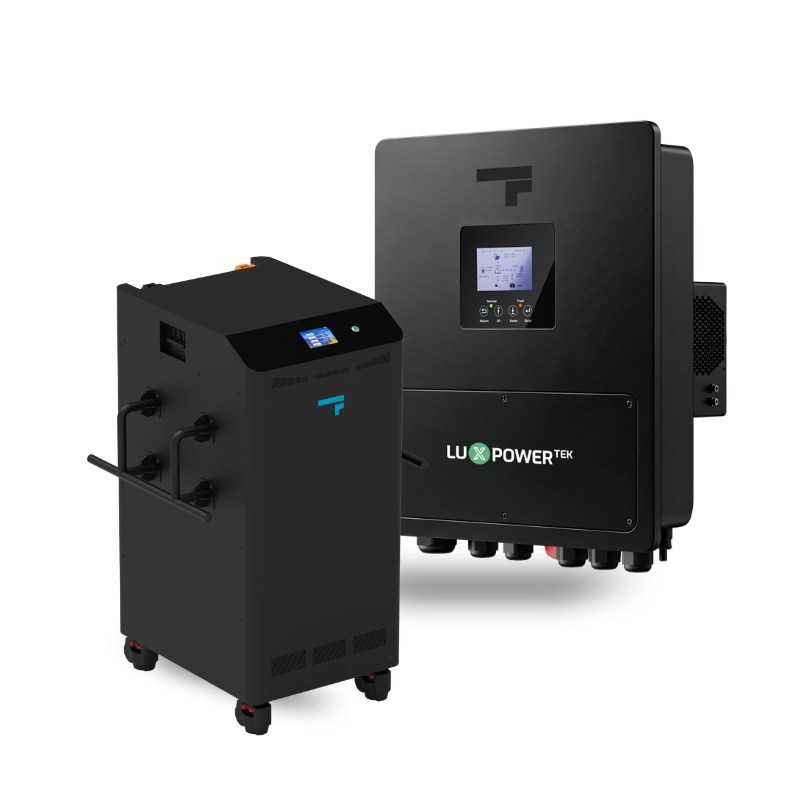

SNA PRO 6.5K Off-Grid Inverter
The Fogstar SNA PRO-EU 6.5K is a compact single-phase off-grid inverter designed for reliable standalone energy systems. Featuring dual MPPTs, generator support and seamless integration with Fogstar 48/51.2V batteries, it provides dependable power for off-grid homes, cabins, workshops and remote installations.
Quick Specs
• 6.5kW AC output
• Dual MPPT inputs
• Up to 12kW PV input
• 135A charge / 140A discharge
• 13kW surge power for 5 seconds S&S inverter spec
➡️ View SNA PRO 6.5K Off-Grid Inverter

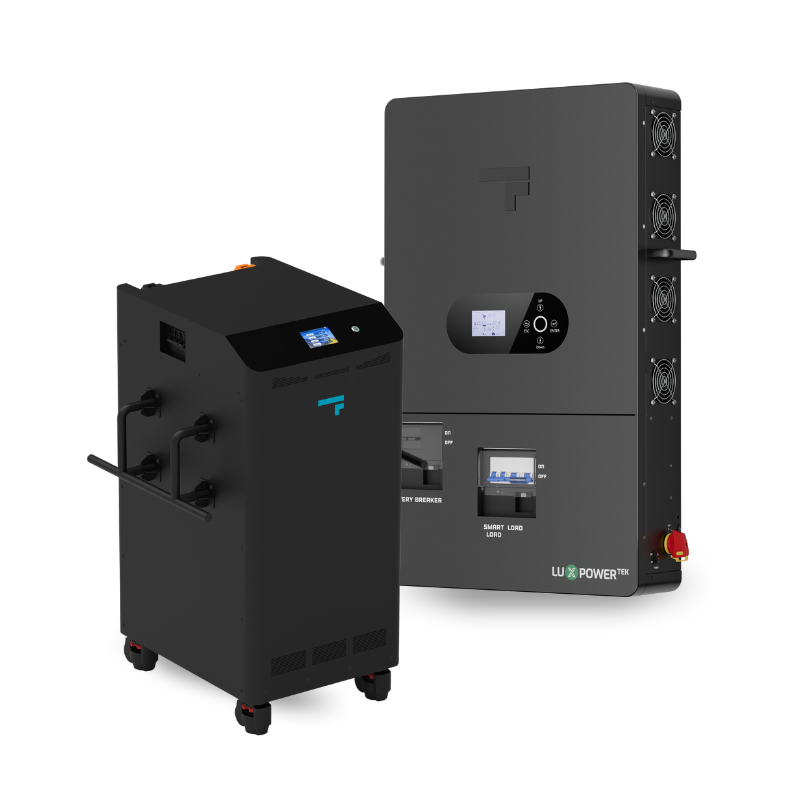

SNA 14K Off-Grid Inverter
The Fogstar SNA 14K is a high-capacity single-phase off-grid inverter designed for larger residential, commercial and agricultural energy systems. Featuring dual MPPTs, dedicated generator support and seamless integration with Fogstar 48/51.2V batteries, it delivers substantial solar and battery capacity for demanding standalone installations.
Quick Specs
• 14kW AC output
• Dual MPPT inputs
• Up to 24kW PV input
• 270A battery charge/discharge
• Up to 15kW generator input S&S inverter spec
Planning a larger installation? Pair your battery with our 20kW Three-Phase Hybrid Inverter, ideal for commercial properties, agricultural applications and scalable energy storage systems.

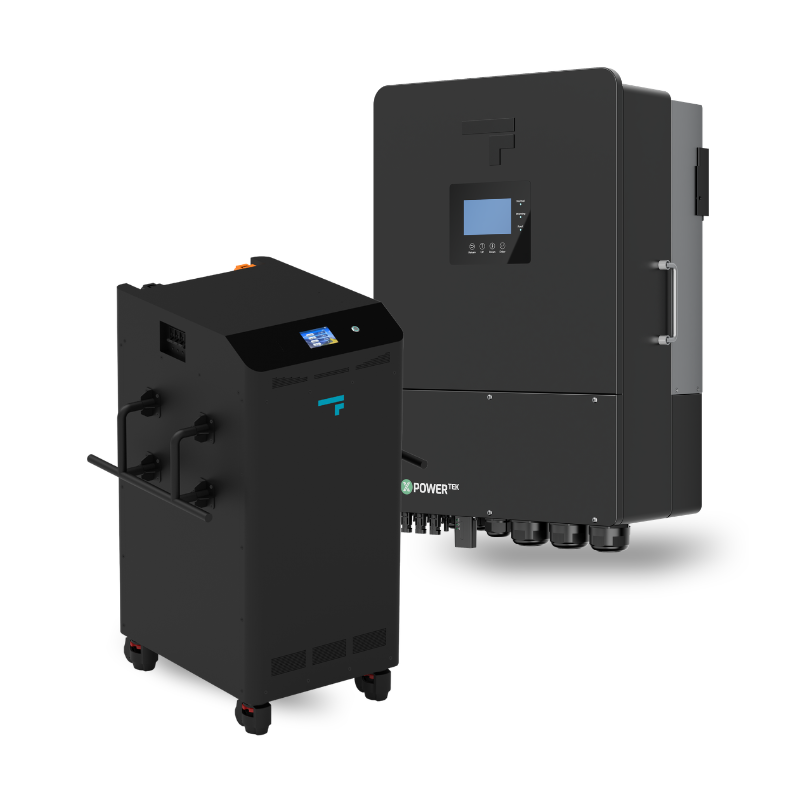

20kW Three-Phase Hybrid Inverter
The Luxpower TriP2-LB-3P 20K is a high-capacity three-phase hybrid inverter designed for residential, commercial and agricultural energy systems. Featuring triple MPPTs, generator support and seamless integration with Fogstar 48/51.2V batteries, it delivers flexible and efficient energy management for larger installations with demanding power requirements.
Quick Specs
• 20kW three-phase AC output
• 3 independent MPPT inputs
• Up to 30kW PV input
• Up to 250A battery charge/discharge
• Parallel capability up to 10 units
Get in touch
We're here to help
Our team are here to make the installation process simple. Please get in touch with any questions - we're always happy to help.
