Fogstar Energy 16.1kWh 51.2V Battery + Inverter Bundle
Couldn't load pickup availability
Outdoor Energy Storage, Engineered for UK Conditions
Simply select your preferred Fogstar inverter option above to create a complete energy storage system tailored to your installation.
Designed for both indoor and outdoor use, the Fogstar Energy IP65-Rated 16.1kWh Battery combines high-capacity energy storage with advanced safety systems, intelligent thermal management and industry-leading inverter compatibility. Its fully sealed IP65-rated enclosure protects against dust and water ingress, making it ideal for residential, commercial and off-grid energy storage applications.
Register for a trade account to access our latest pricing.
Premium Grade A EVE Cells
Built using 16 Grade A EVE MB31 LiFePO₄ cells for exceptional reliability, safety and long-term performance.
IP65-Rated Outdoor Protection
Fully sealed IP65-rated enclosure protects internal components from dust ingress and water jets, making it suitable for both indoor and outdoor installation.
Integrated Fire Suppression
Automatic aerosol fire suppression system activates if internal temperatures reach critical levels, helping to suppress fire at the source without maintenance or user intervention.
Intelligent Battery Heating
Integrated heating automatically activates in cold conditions, enabling safe charging at 0°C and reliable operation in ambient temperatures as low as -20°C.
Scalable Energy Storage
Supports up to 15 batteries in parallel, allowing system capacity to expand as energy requirements increase.
Advanced Battery Management
Industry-leading PACE 200A Battery Management System provides intelligent monitoring, protection and communications.
JK Active Balancing
Integrated 2A JK Active Balancer helps optimise cell balance, improve efficiency and maximise long-term battery performance.
Built-In DC Protection
Integrated 250A DC breaker provides safe system isolation and critical fault protection.
Touchscreen Monitoring
4.3-inch TFT LCD touchscreen display provides intuitive access to battery status, diagnostics and system configuration.
Easy Installation & Mobility
Integrated wheels and supplied M8 connection hardware simplify transportation, positioning and installation.
10-Year Warranty
Backed by a comprehensive 10-year warranty for complete peace of mind.
• Battery Chemistry: LiFePO₄
• Total Energy: 16.08kWh
• Nominal Voltage: 51.2V
• Capacity: 314Ah
• Cell Configuration: 16S1P
• Cell Model: EVE MB31 Grade A
• BMS: PACE 200A
• Active Balancer: JK 2A Active Balancer
Performance
• Maximum Continuous Discharge Current: 200A
• Cycle Life: Up to 8,000 Cycles @ 80% DoD
• Heating Activation Temperature: Below 5°C
• Safe Charging Temperature: 0°C and above
• Minimum Operating Temperature: -20°C
Physical Specifications
• IP Rating: IP65
• Dimensions: 500(L) × 232(W) × 915(H)mm
• Weight: 128.8kg
• Integrated Transport Wheels
Communications
• 4.3" TFT LCD Touchscreen Display
• CAN Communication
• RS485 Communication
What's Included?
• Fogstar Energy IP65-Rated 16.1kWh Battery
• Integrated 250A DC Breaker
• M8 Ring Terminal Connection Hardware
• Terminal Protective Covers
Installation Notes
• Suitable for indoor and outdoor installation.
• Always connect all negative conductors before connecting positive conductors.
• Verify the correct inverter communication protocol has been selected prior to commissioning.
• Refer to inverter manufacturer guidelines for system-specific installation requirements.
Choose from a 3.6kW or 10kW Hybrid Inverter to create a grid-connected energy storage system. Ideal for storing solar energy, reducing grid reliance and maximising self-consumption.

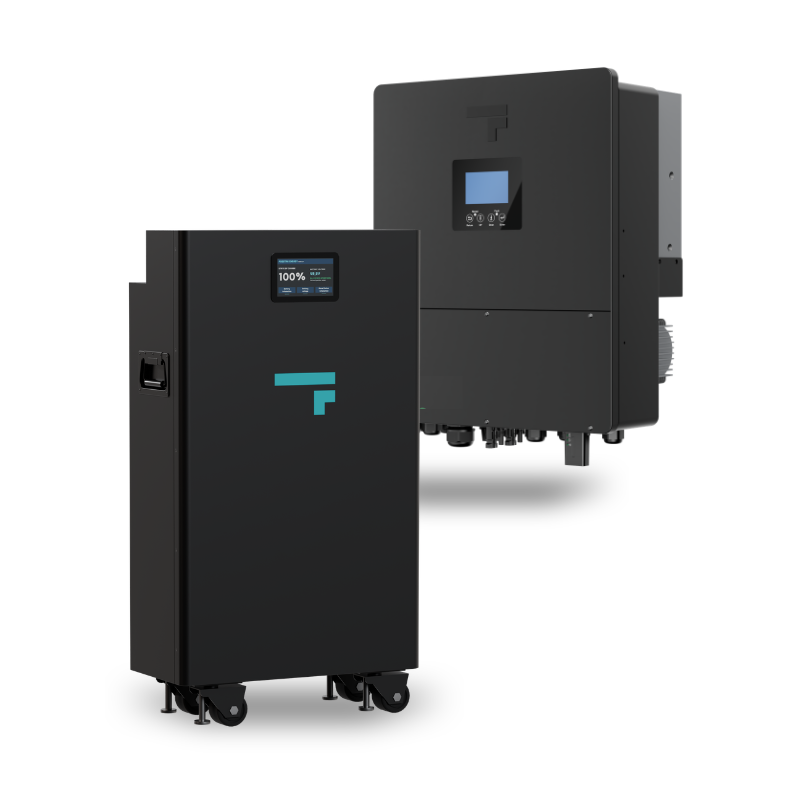

3.6kW Hybrid Inverter
The Fogstar GEN2-LB-EU 3.6K is a compact single-phase hybrid inverter designed for residential solar and battery storage systems. Featuring dual MPPTs, backup power capability and seamless integration with Fogstar 48/51.2V batteries, it is ideal for smaller installations and essential backup applications.
Quick Specs
• 3.6kW AC output
• Dual MPPT inputs
• Up to 7kW PV input
• 80A battery charge/discharge
• On-grid and off-grid operation

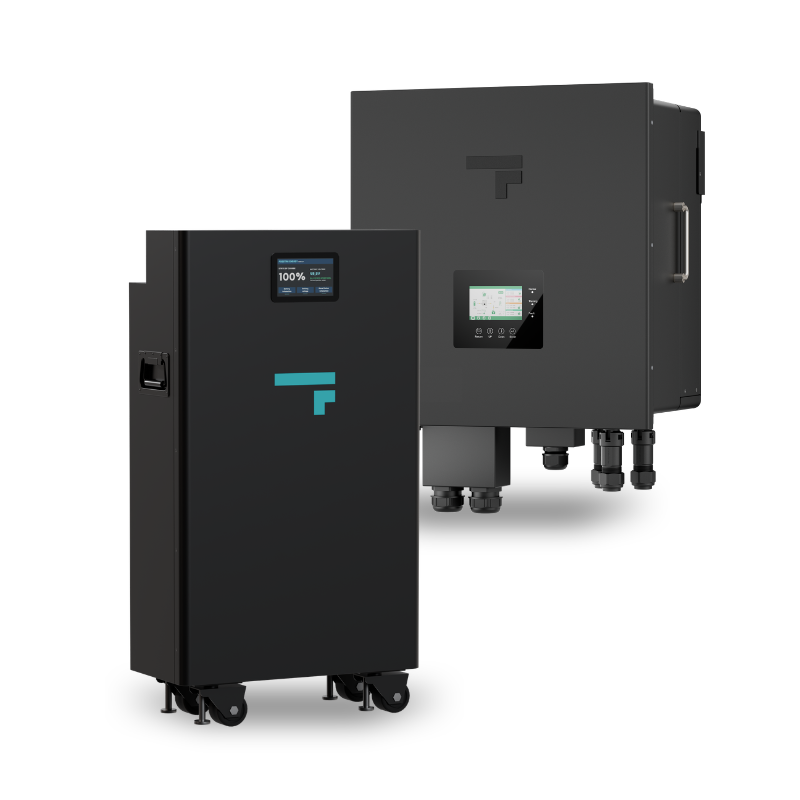

10kW Hybrid Inverter
The Fogstar GEN-LB-EU 10K is a high-performance single-phase hybrid inverter designed for larger residential and light commercial energy storage systems. Featuring dual MPPTs, generator support and seamless integration with Fogstar 48/51.2V batteries, it delivers exceptional flexibility for solar self-consumption, backup power and off-grid applications.
Quick Specs
• 10kW AC output
• Dual MPPT inputs
• Up to 15kW PV input
• 208A battery charge/discharge
• On-grid and off-grid operation
Choose from a 6kW or 14kW Off-Grid Inverter for properties operating independently from the grid. Perfect for remote locations, workshops, cabins and off-grid homes.

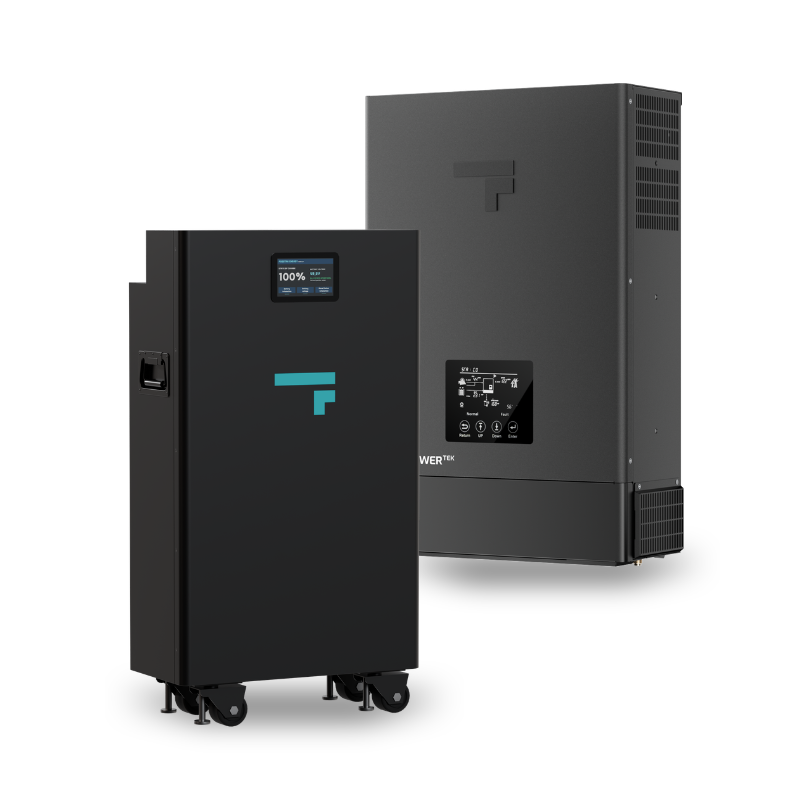

6kW Off-Grid Inverter
The Fogstar SNA 6K is a powerful single-phase off-grid inverter designed for reliable energy storage and backup power applications. Featuring dual MPPTs, generator support and seamless integration with Fogstar 48/51.2V batteries, it is ideal for off-grid homes, cabins and remote energy systems.
Quick Specs
• 6kW AC output
• Dual MPPT inputs
• Up to 9.6kW PV input
• 140A battery charge/discharge
• Parallel capability up to 18 units
➡️ View SNA 6K Off-Grid Inverter

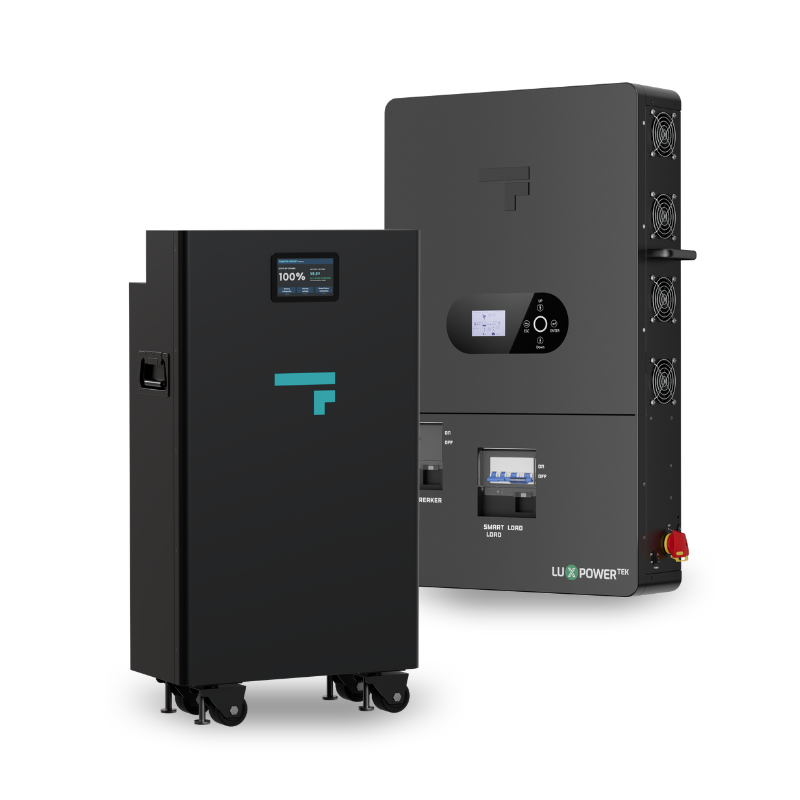

14kW Off-Grid Inverter
The Fogstar SNA 14K is a high-capacity single-phase off-grid inverter designed for larger residential, commercial and agricultural energy systems. Featuring dual MPPTs, generator support and seamless integration with Fogstar 48/51.2V batteries, it delivers exceptional performance for high-demand off-grid and backup power applications.
Quick Specs
• Up to 14kW AC output
• Dual MPPT inputs
• Up to 24kW PV input
• 250A battery charge/discharge
• Parallel capability up to 16 units
Planning a larger installation? Pair your battery with our 20kW Three-Phase Hybrid Inverter, ideal for commercial properties, agricultural applications and scalable energy storage systems.

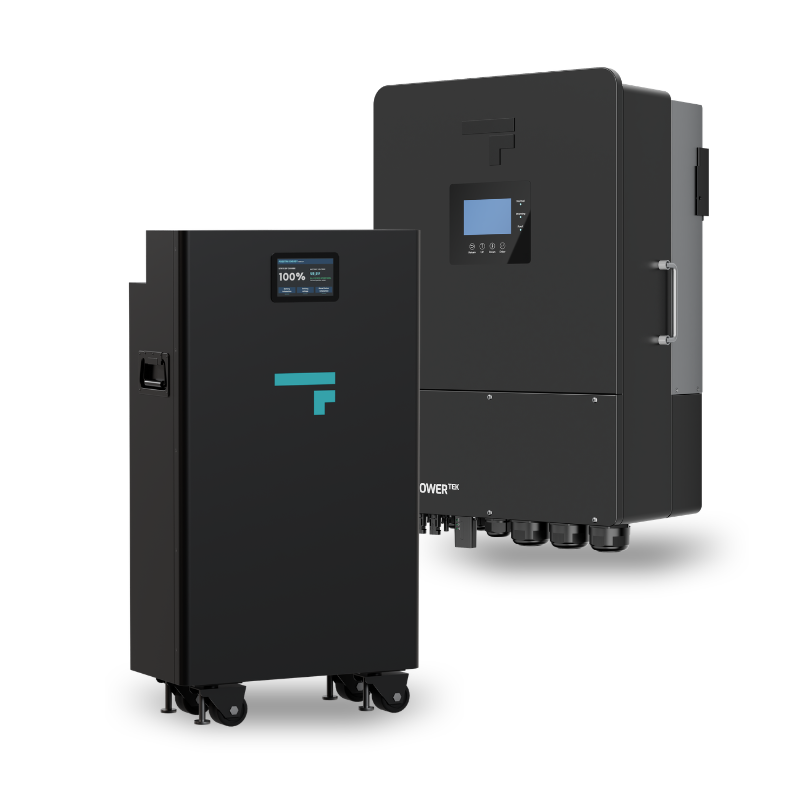

20kW Three-Phase Hybrid Inverter
The Luxpower TriP2-LB-3P 20K is a high-capacity three-phase hybrid inverter designed for residential, commercial and agricultural energy systems. Featuring triple MPPTs, generator support and seamless integration with Fogstar 48/51.2V batteries, it delivers flexible and efficient energy management for larger installations with demanding power requirements.
Quick Specs
• 20kW three-phase AC output
• 3 independent MPPT inputs
• Up to 30kW PV input
• Up to 250A battery charge/discharge
• Parallel capability up to 10 units
