Fogstar Energy 16.1kWh ECO 51.2V Battery + Inverter Bundle
Couldn't load pickup availability
Flexible Energy Storage, Built Around Fogstar Reliability
Simply select your preferred Fogstar inverter option above to create a complete energy storage system tailored to your installation.
Whether you're storing solar energy, reducing reliance on the grid, building an off-grid system or planning a larger scalable installation, the Fogstar Energy 16.1kWh ECO Battery provides a powerful foundation for modern energy storage. Designed for residential, commercial and light industrial applications, it features integrated battery heating, active balancing, fire suppression and advanced battery management for reliable long-term performance in demanding environments.
Fully Assembled & Ready to Install
Delivered fully assembled and ready for installation, reducing setup time and simplifying deployment.
Integrated Fire Suppression
Built-in heat-activated aerosol fire suppression system provides an additional layer of protection within the battery enclosure.
Cold-Weather Ready
Integrated battery heating allows charging in temperatures as low as -10°C, helping maintain performance during colder conditions.
Scalable Energy Storage
Supports up to 16 batteries in parallel, allowing systems to scale up to 257.6kWh of total storage capacity.
Advanced Battery Management
Features a high-performance 200A Battery Management System paired with a JK 2A Active Balancer for intelligent protection, monitoring and cell optimisation.
Smart Communications
Integrated CAN and RS485 communications enable seamless inverter integration and real-time battery monitoring.
Touchscreen Monitoring
Built-in LCD touchscreen display provides convenient access to battery status, system information and configuration settings.
Fogstar Support
Backed by a 6-year manufacturer warranty and supported by 10 years of Fogstar customer support.
• Battery Chemistry: LiFePO₄
• Rated Energy: 16.1kWh
• Nominal Voltage: 51.2V
• Operating Voltage Range: 42V – 58.2V
• Capacity: 314Ah
• Cell Configuration: 1P16S
• BMS: 200A Battery Management System
• Active Balancer: JK 2A Active Balancer
Performance
• Rated Charge Current: 100A
• Rated Discharge Current: 200A
• Maximum Continuous Discharge Current: 200A
• Cycle Life: Up to 8,000 Cycles @ 91% DoD
• Charge Temperature Range: -10°C to 40°C
• Discharge Temperature Range: -20°C to 40°C
Physical Specifications
• Dimensions: 898.5(H) × 415(L) × 260(W)mm
• Weight: 119.5kg ±3kg
Communications
• LCD Touchscreen Display
• CAN Communication
• RS485 Communication
Inverter Compatibility
• Victron
• Sunsynk
• Solis
• Luxpower
• Voltacon
• Additional compatible low-voltage inverter platforms
What's Included?
• Fogstar Energy 16.1kWh Battery
• 1.5m 50mm² Positive Battery Cable with M8 Ring Lug
• 1.5m 50mm² Negative Battery Cable with M8 Ring Lug
• 1.5m Communication Cable
Installation Notes
• Always connect all negative conductors before connecting positive conductors.
• Supplied cables are suitable for most installations.
• Some system configurations may require connection via an external busbar and manufacturer-specific inverter cables.
Choose from a 3.6kW or 10kW Hybrid Inverter to create a grid-connected energy storage system. Ideal for storing solar energy, reducing grid reliance and maximising self-consumption.

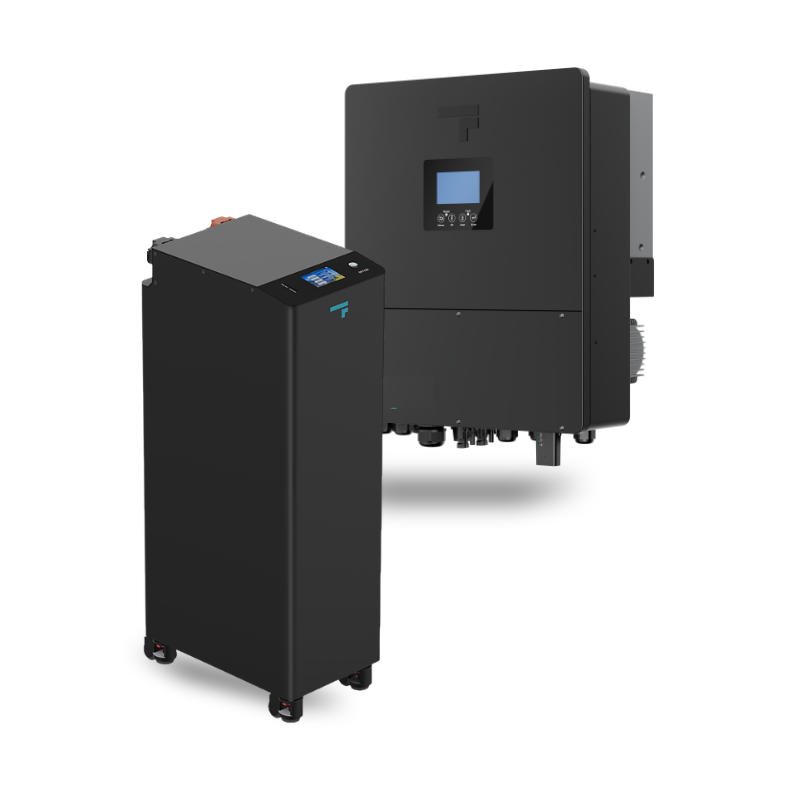

3.6kW Hybrid Inverter
The Fogstar GEN2-LB-EU 3.6K is a compact single-phase hybrid inverter designed for residential solar and battery storage systems. Featuring dual MPPTs, backup power capability and seamless integration with Fogstar 48/51.2V batteries, it is ideal for smaller installations and essential backup applications.
Quick Specs
• 3.6kW AC output
• Dual MPPT inputs
• Up to 7kW PV input
• 80A battery charge/discharge
• On-grid and off-grid operation

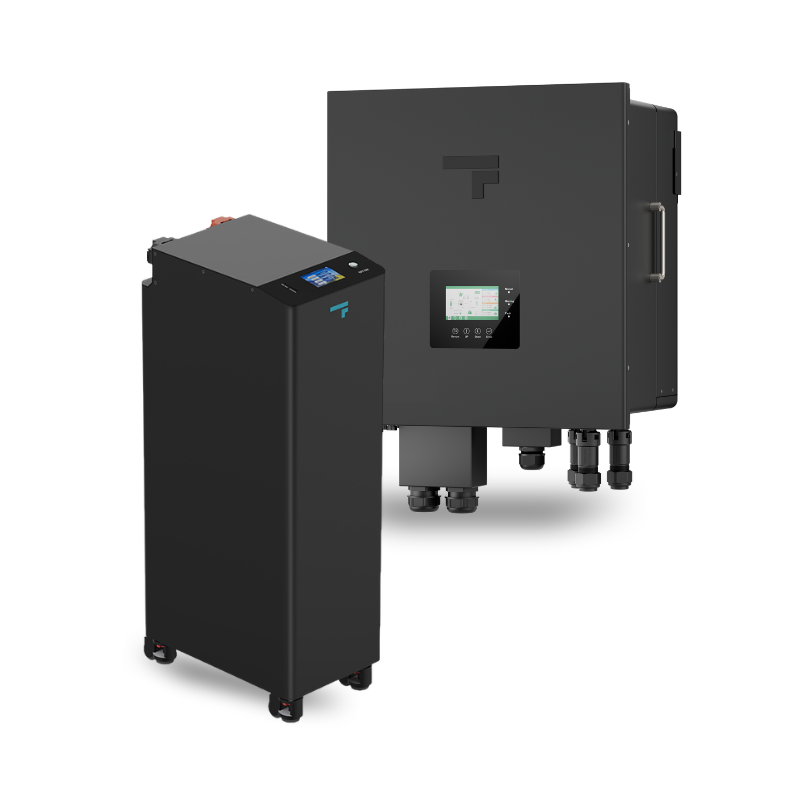

10kW Hybrid Inverter
The Fogstar GEN-LB-EU 10K is a high-performance single-phase hybrid inverter designed for larger residential and light commercial energy storage systems. Featuring dual MPPTs, generator support and seamless integration with Fogstar 48/51.2V batteries, it delivers exceptional flexibility for solar self-consumption, backup power and off-grid applications.
Quick Specs
• 10kW AC output
• Dual MPPT inputs
• Up to 15kW PV input
• 208A battery charge/discharge
• On-grid and off-grid operation
Choose from a 6kW or 14kW Off-Grid Inverter for properties operating independently from the grid. Perfect for remote locations, workshops, cabins and off-grid homes.

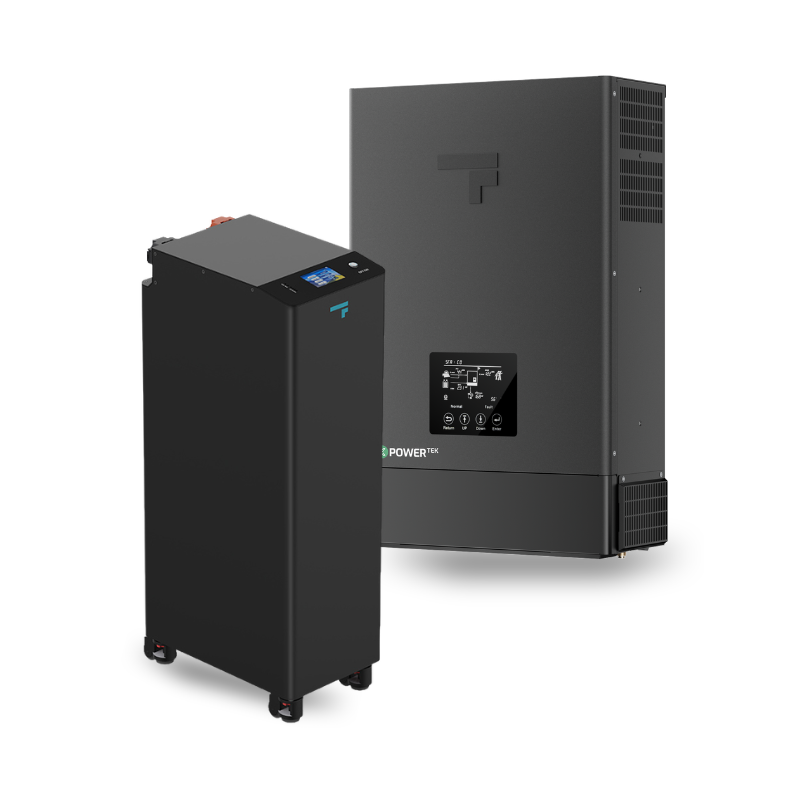

6kW Off-Grid Inverter
The Fogstar SNA 6K is a powerful single-phase off-grid inverter designed for reliable energy storage and backup power applications. Featuring dual MPPTs, generator support and seamless integration with Fogstar 48/51.2V batteries, it is ideal for off-grid homes, cabins and remote energy systems.
Quick Specs
• 6kW AC output
• Dual MPPT inputs
• Up to 9.6kW PV input
• 140A battery charge/discharge
• Parallel capability up to 18 units
➡️ View SNA 6K Off-Grid Inverter

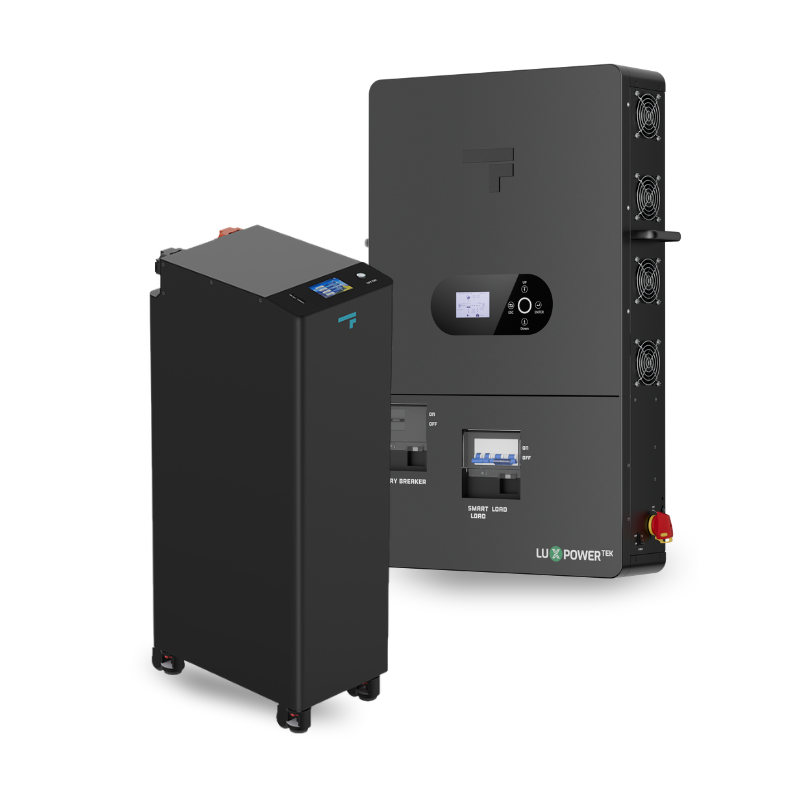

14kW Off-Grid Inverter
The Fogstar SNA 14K is a high-capacity single-phase off-grid inverter designed for larger residential, commercial and agricultural energy systems. Featuring dual MPPTs, generator support and seamless integration with Fogstar 48/51.2V batteries, it delivers exceptional performance for high-demand off-grid and backup power applications.
Quick Specs
• Up to 14kW AC output
• Dual MPPT inputs
• Up to 24kW PV input
• 250A battery charge/discharge
• Parallel capability up to 16 units
Planning a larger installation? Pair your battery with our 20kW Three-Phase Hybrid Inverter, ideal for commercial properties, agricultural applications and scalable energy storage systems.

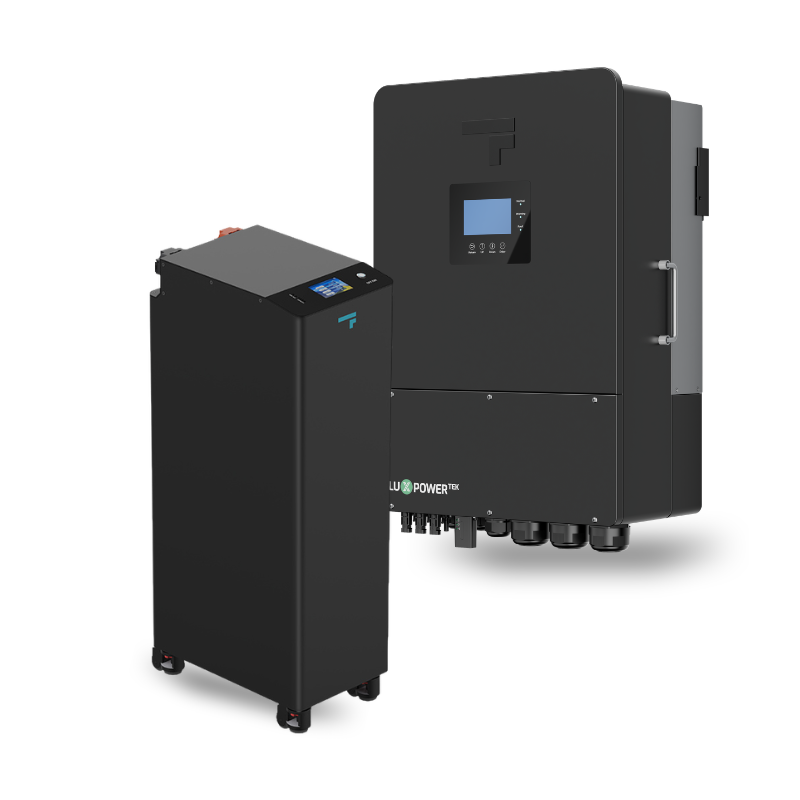

20kW Three-Phase Hybrid Inverter
The Luxpower TriP2-LB-3P 20K is a high-capacity three-phase hybrid inverter designed for residential, commercial and agricultural energy systems. Featuring triple MPPTs, generator support and seamless integration with Fogstar 48/51.2V batteries, it delivers flexible and efficient energy management for larger installations with demanding power requirements.
Quick Specs
• 20kW three-phase AC output
• 3 independent MPPT inputs
• Up to 30kW PV input
• Up to 250A battery charge/discharge
• Parallel capability up to 10 units
Get in touch
We're here to help
Our team are here to make the installation process simple. Please get in touch with any questions - we're always happy to help.
