Fogstar Energy 32kWh 51.2V Battery + Inverter Bundle
Couldn't load pickup availability
High-Capacity Energy Storage, Built for Demanding Applications
Simply select your preferred Fogstar inverter option above to create a complete energy storage system tailored to your installation.
Whether you're building a large residential battery system, reducing grid reliance, storing solar energy or powering demanding commercial applications, the Fogstar Energy 32kWh Battery delivers exceptional storage capacity, advanced safety features and dependable long-term performance. Featuring integrated battery heating, built-in fire suppression and intelligent cell management, it provides the protection, reliability and scalability required for modern energy storage installations.
High-Capacity Energy Storage
With 32kWh of usable storage capacity in a single enclosure, the Fogstar Energy 32kWh Battery is designed for larger residential systems, commercial installations and demanding off-grid applications.
Advanced Battery Management
Features a high-performance 300A Battery Management System (BMS) paired with a JK 2A Active Balancer for intelligent monitoring, protection and cell optimisation.
Integrated Fire Suppression
Built-in heat-activated aerosol fire suppression system provides rapid internal response to thermal events, helping to enhance system safety without the need for additional external equipment.
Cold-Weather Ready
Integrated battery heating enables safe charging down to -10°C, helping to maintain battery performance and protect cell health during colder conditions.
Scalable Energy Storage
Supports up to 16 batteries in parallel, allowing total system capacity to expand as energy requirements grow.
JK Active Balancing
Integrated 2A active balancing continuously optimises cell performance, helping to maximise efficiency, longevity and overall battery health.
Smart Communications
Integrated communications allow seamless inverter integration, real-time monitoring and simplified system configuration.
Touchscreen Monitoring
Built-in LCD touchscreen display provides convenient access to battery status, diagnostics and system information.
Integrated Safety Protection
Features a heavy-duty 375A DC breaker and dedicated On/Off isolation switch for safe operation, maintenance and system protection.
Heavy-Duty Construction
Robust enclosure incorporates integrated wheels and lifting points, making transportation and installation easier despite its high-capacity design.
6-Year Warranty
Backed by a comprehensive 6-year manufacturer warranty and supported by 10 years of Fogstar customer service.
• Battery Chemistry: LiFePO₄
• Rated Energy: 32kWh
• Nominal Voltage: 51.2V
• Operating Voltage Range: 42V – 58.2V
• Capacity: 628Ah
• Cell Configuration: 16S2P
• BMS: Seplos 300A
• Active Balancer: JK 2A Active Balancer
Performance
• Maximum Continuous Discharge Current: 300A
• Cycle Life: Up to 8,000 Cycles @ 91% DoD
• Charge Temperature Range: -10°C to 40°C
• Discharge Temperature Range: -20°C to 40°C
• Integrated Battery Heating
Physical Specifications
• Dimensions: 538(L) × 416(W) × 900(H)mm
• Weight: 233kg
• Integrated Wheels
• Integrated Lifting System
• Integrated 375A DC Breaker
• Dedicated On/Off Isolation Switch
• Integrated Fire Suppression System
Communications
• LCD Touchscreen Display
• CAN Communication
• RS485 Communication
What's Included?
• Fogstar Energy 48V 32kWh Battery
• 1.5m 95mm² Positive Battery Cable with M8 Ring Lug
• 1.5m 95mm² Negative Battery Cable with M8 Ring Lug
• 1.5m Communication Cable
Installation Notes
• Always connect all negative conductors before connecting positive conductors.
• Supplied cables are suitable for most installations.
• Some system configurations may require connection via an external busbar and manufacturer-specific inverter cables.
Choose from a 3.6kW or 10kW Hybrid Inverter to create a grid-connected energy storage system. Ideal for storing solar energy, reducing grid reliance and maximising self-consumption.

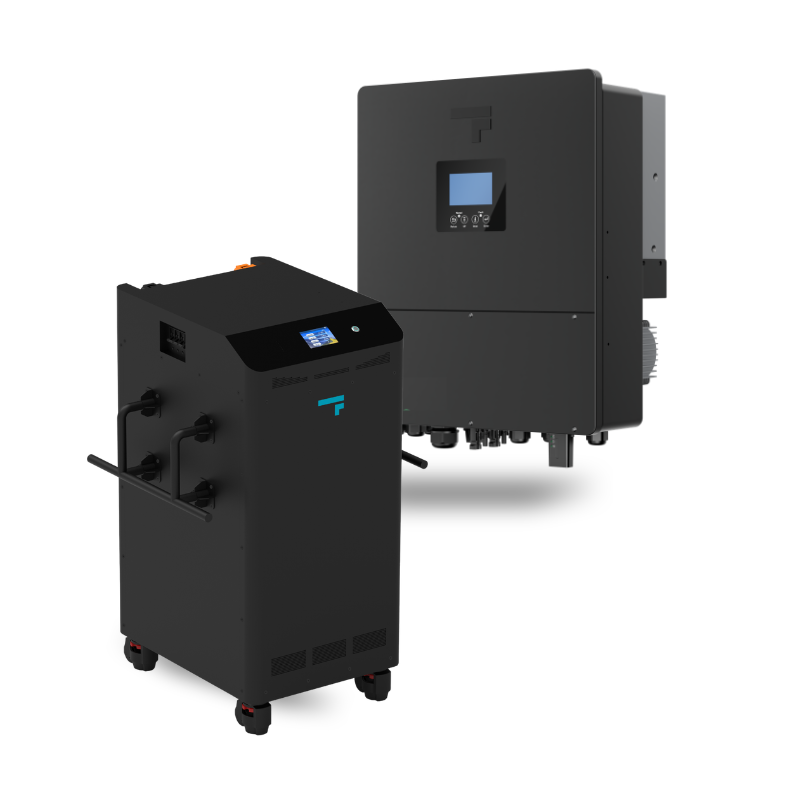

3.6kW Hybrid Inverter
The Fogstar GEN2-LB-EU 3.6K is a compact single-phase hybrid inverter designed for residential solar and battery storage systems. Featuring dual MPPTs, backup power capability and seamless integration with Fogstar 48/51.2V batteries, it is ideal for smaller installations and essential backup applications.
Quick Specs
• 3.6kW AC output
• Dual MPPT inputs
• Up to 7kW PV input
• 80A battery charge/discharge
• On-grid and off-grid operation

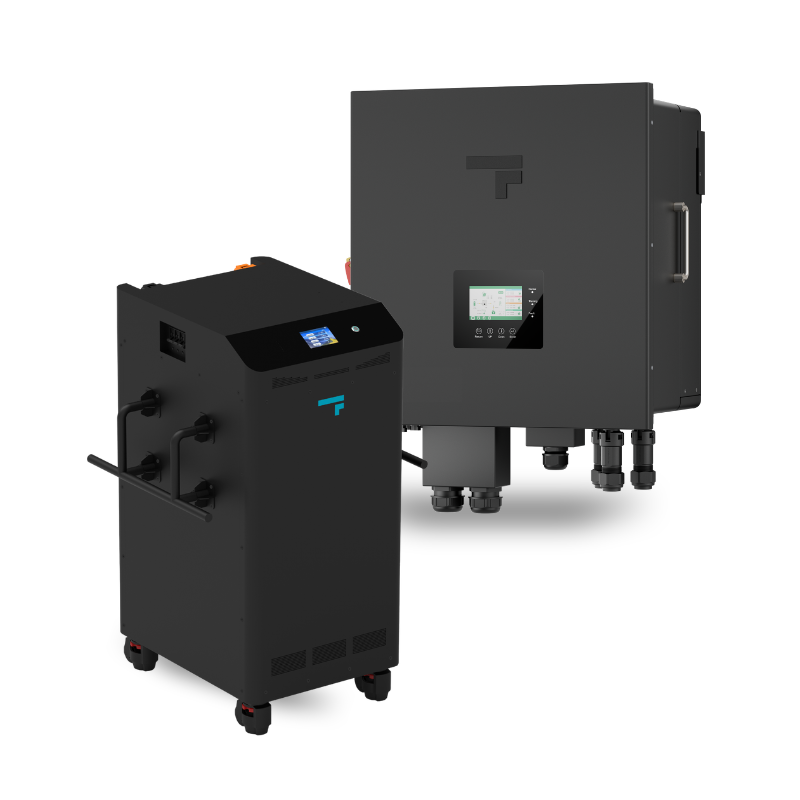

10kW Hybrid Inverter
The Fogstar GEN-LB-EU 10K is a high-performance single-phase hybrid inverter designed for larger residential and light commercial energy storage systems. Featuring dual MPPTs, generator support and seamless integration with Fogstar 48/51.2V batteries, it delivers exceptional flexibility for solar self-consumption, backup power and off-grid applications.
Quick Specs
• 10kW AC output
• Dual MPPT inputs
• Up to 15kW PV input
• 208A battery charge/discharge
• On-grid and off-grid operation
Choose from a 6kW or 14kW Off-Grid Inverter for properties operating independently from the grid. Perfect for remote locations, workshops, cabins and off-grid homes.

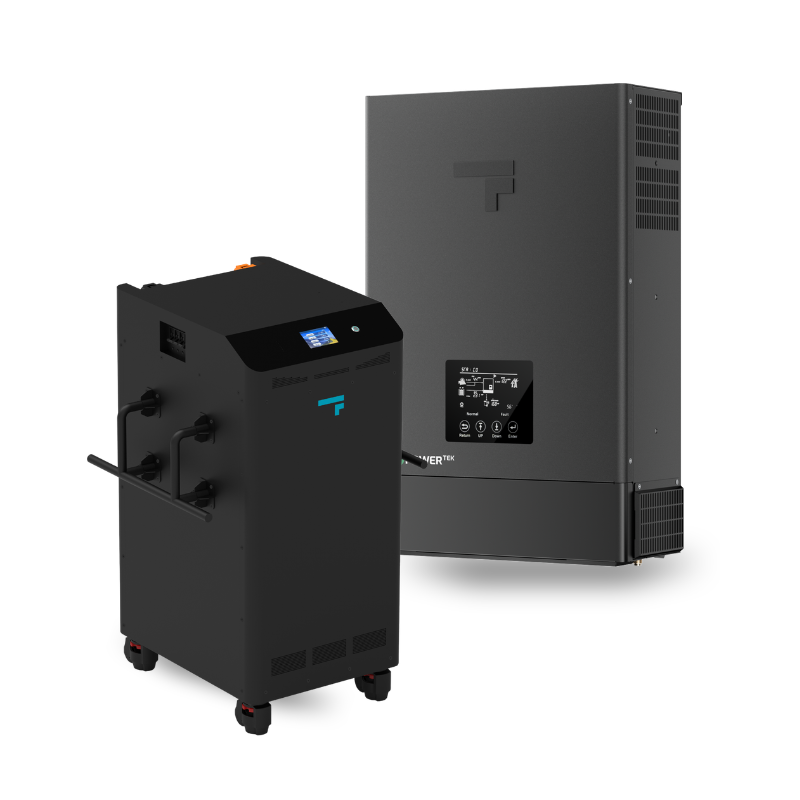

6kW Off-Grid Inverter
The Fogstar SNA 6K is a powerful single-phase off-grid inverter designed for reliable energy storage and backup power applications. Featuring dual MPPTs, generator support and seamless integration with Fogstar 48/51.2V batteries, it is ideal for off-grid homes, cabins and remote energy systems.
Quick Specs
• 6kW AC output
• Dual MPPT inputs
• Up to 9.6kW PV input
• 140A battery charge/discharge
• Parallel capability up to 18 units
➡️ View SNA 6K Off-Grid Inverter

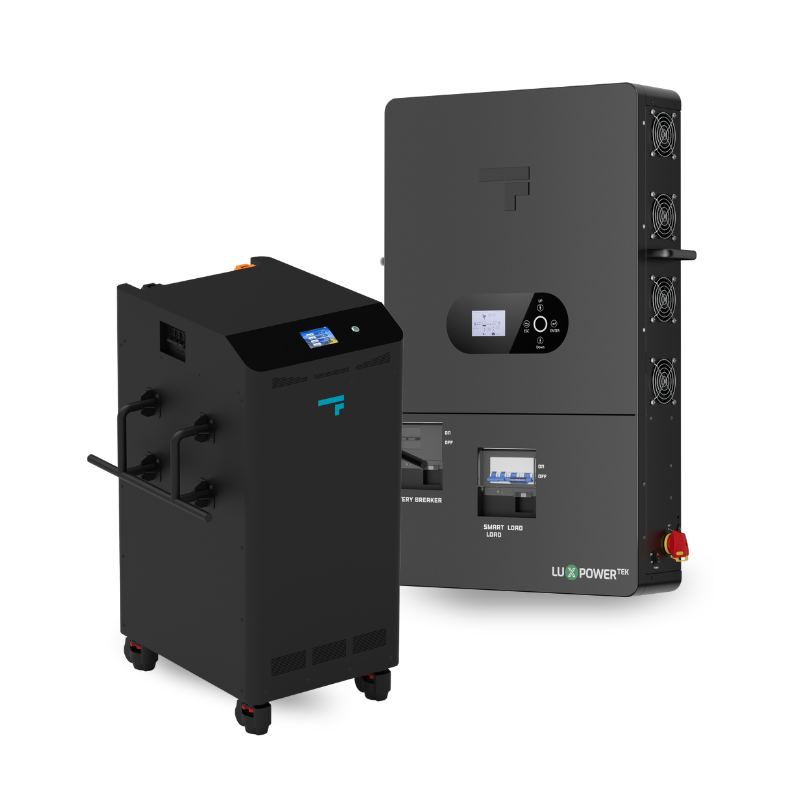

14kW Off-Grid Inverter
The Fogstar SNA 14K is a high-capacity single-phase off-grid inverter designed for larger residential, commercial and agricultural energy systems. Featuring dual MPPTs, generator support and seamless integration with Fogstar 48/51.2V batteries, it delivers exceptional performance for high-demand off-grid and backup power applications.
Quick Specs
• Up to 14kW AC output
• Dual MPPT inputs
• Up to 24kW PV input
• 250A battery charge/discharge
• Parallel capability up to 16 units
Planning a larger installation? Pair your battery with our 20kW Three-Phase Hybrid Inverter, ideal for commercial properties, agricultural applications and scalable energy storage systems.

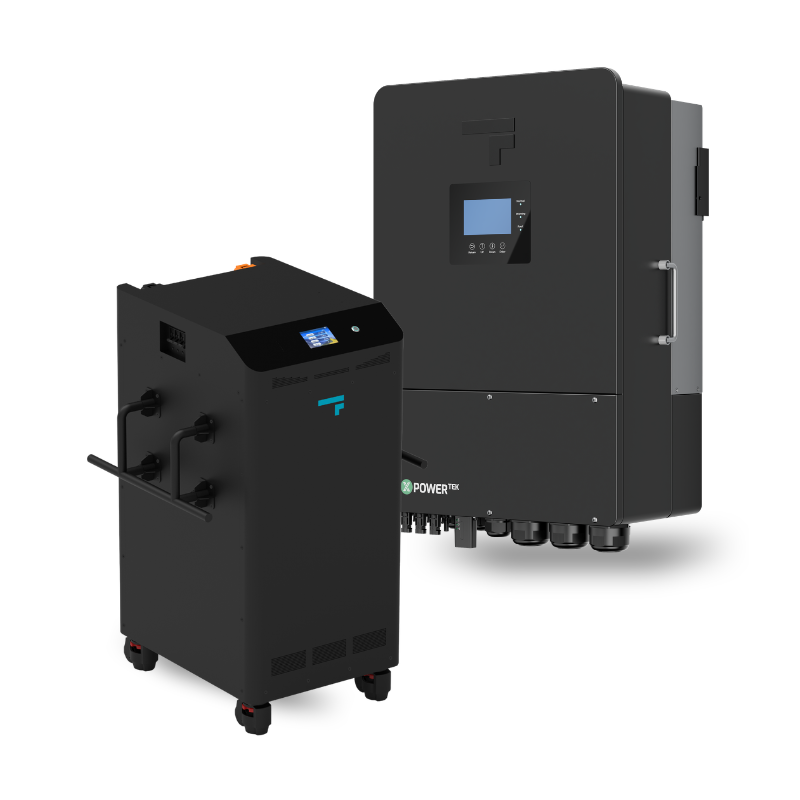

20kW Three-Phase Hybrid Inverter
The Luxpower TriP2-LB-3P 20K is a high-capacity three-phase hybrid inverter designed for residential, commercial and agricultural energy systems. Featuring triple MPPTs, generator support and seamless integration with Fogstar 48/51.2V batteries, it delivers flexible and efficient energy management for larger installations with demanding power requirements.
Quick Specs
• 20kW three-phase AC output
• 3 independent MPPT inputs
• Up to 30kW PV input
• Up to 250A battery charge/discharge
• Parallel capability up to 10 units
