By Fogstar Energy

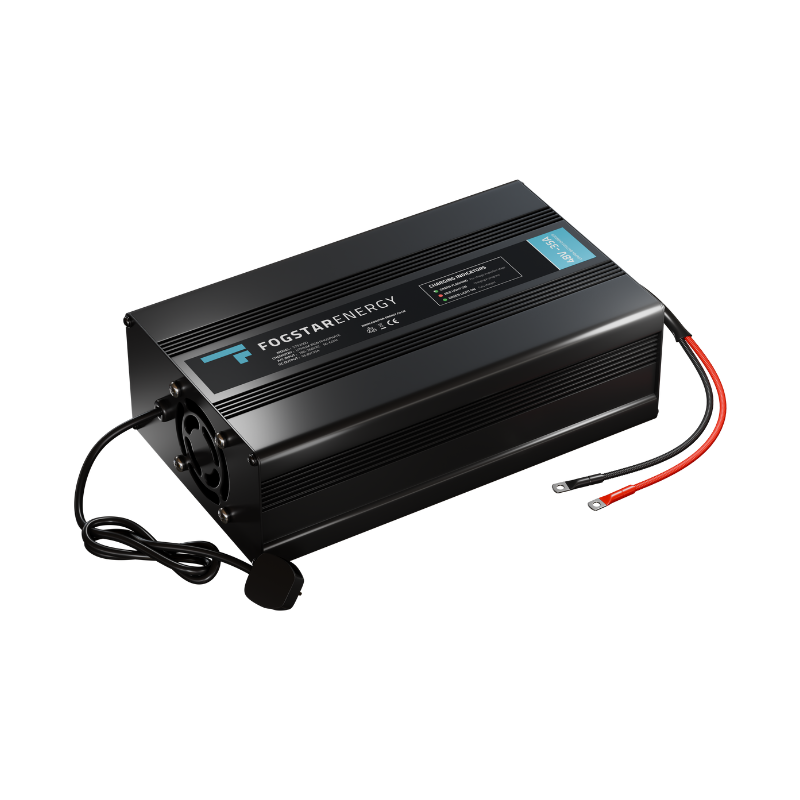

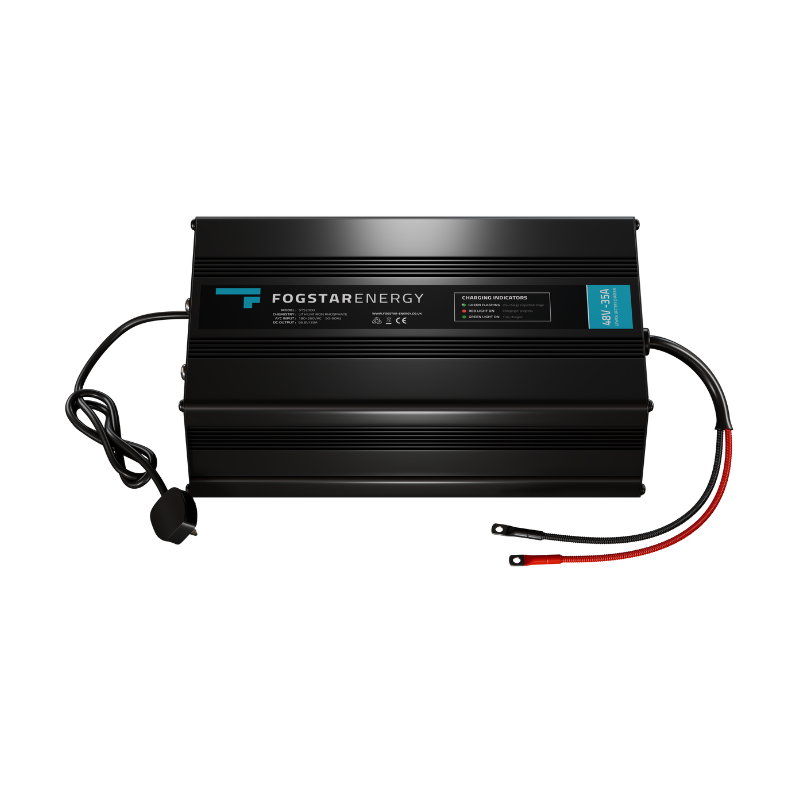

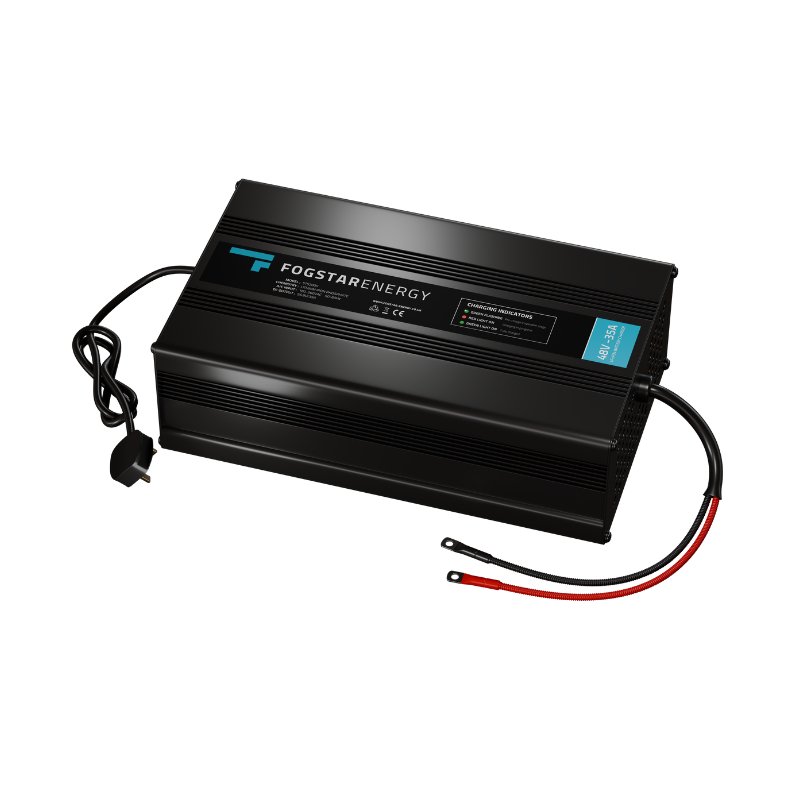

Fogstar Energy 48V 35A Charger

Regular price £119.00 GBP
Regular price Sale price £119.00 GBP
Tax included.
Availability: Out of stock
Regular price £119.00 GBP
Regular price Sale price £119.00 GBP

This Fogstar Energy LiFePO4 charger is specifically engineered to work seamlessly with your 48V LiFePO4 batteries, ensuring safe and efficient charging. These chargers have been designed for use with our Fogstar Energy 48V Rack Battery.

Key Features:

  • 48V Output: Perfectly suited for charging 48V LiFePO4 battery systems.
  • 35A Current: Delivers a powerful charge to get your batteries back up and running quickly.
  • Compatible: Ideal for using with the 48V Fogstar Energy Rack batteries.
  • User-Friendly: Designed for ease of use with clear operation and status indicators.
  • Extensive Protections: Built-in safeguards against over-voltage, over-current, short circuits, and reverse polarity for safe and reliable charging.
  • High Seismic Grade: Withstands vibrations and shocks.

HEALTH AND SAFETY

  • Do not disassemble the charger
  • Do not leave charger on unattended
  • Do not remove the charger cover
  • Do not block the charger air vent
  • Keep away from heat source
  • Keep away from water
  • Do not crush, incinerate or modify
  • Only use within manufacturers specifications.

  1. Remove your charger from the packaging
  2. Retain your packaging
  3. Ensure the charger air vents are not blocked before connecting
  4. Connect the black (negative -) cable to the black (negative -) terminal on the battery
  5. Connect the red (positive +) cable to the red (positive +) terminal on the battery
  6. Ensure terminal rings are tightened
  7. Plug your battery charger into the mains and switch ON
  8. Your battery indicator light should be flashing green (pre-charge inspection stage).

Working Temperature -30°c ~ +40°c
Storage Temperature -40°c ~ +70°c
Relative Humidity 5% ~ 95%
Heat Dissipation Mode Fan Cooling
Input Voltage 180-260 VAC
Input Frequency 50Hz / 60 Hz
Chemistry LiFePO4
DC Output 28.4V/40A
Ring connector size M10 (will fit M8 using a washer)
