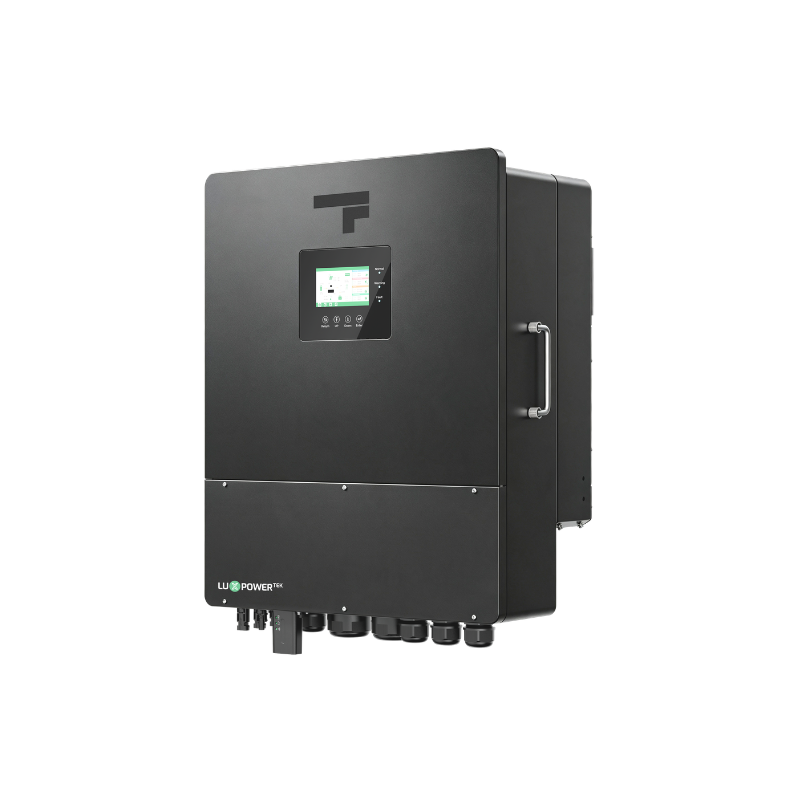

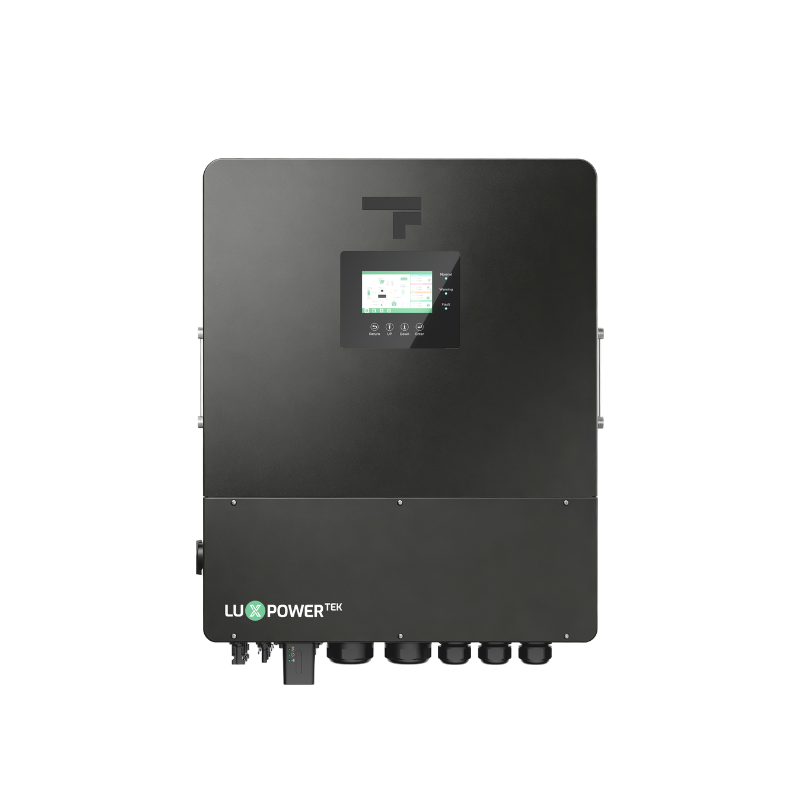

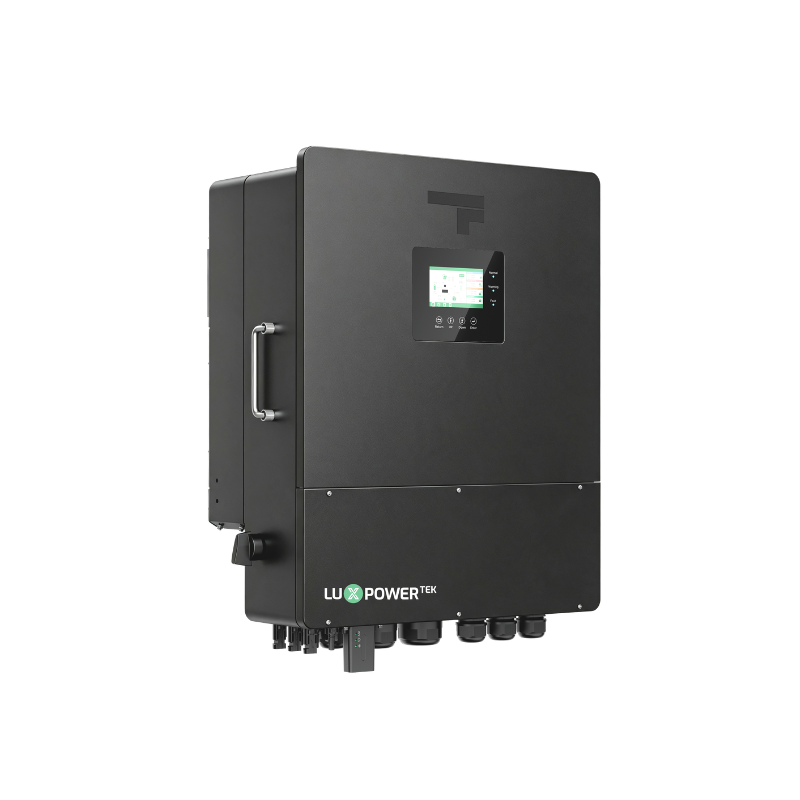

Fogstar x LuxpowerTek Gen2 14k (Single-Phase Hybrid Inverter)
Prices exclude VAT
The Fogstar x LuxPowerTek GEN2-LB-EU 14K is a high-output single-phase (230V) hybrid inverter designed for larger residential and light-commercial energy storage systems, with integration for compatible Fogstar Energy 48V (51.2V) battery systems.
Delivering 14kW of rated grid-connected AC output and a 12kW rated UPS / backup output, the GEN2-LB-EU 14K combines high-capacity solar input, powerful battery charging, backup functionality and generator integration in one robust IP66-rated platform.
With three independent MPPTs, up to 18kW of PV input, 250A battery charge and discharge capability and parallel operation for up to 10 units, it provides a flexible solution for demanding single-phase hybrid energy systems.
Couldn't load pickup availability
PLEASE LOG-IN TO SEE TRADE PRICING
Build & Installation
- IP66-rated enclosure
- Smart cooling system
- Transformerless AC-side topology
- Transformer-based battery-side topology
- Touch colour screen
- RS485, Wi-Fi and CAN communication
- Noise emission: <55dB
- Maximum operating altitude: 4000m, with derating above 2000m
- Operating temperature: -25°C to 60°C, with derating above 45°C
- Storage temperature: -25°C to 60°C
- Relative humidity: 0–100%
- Warranty: 10 years
Dimensions: 566mm (L) × 275mm (W) × 653mm (H)
Weight: 48kg
Battery & Power Performance
- 48V rated battery voltage
- 40–60V battery operating range
- Compatible with lithium-ion and lead-acid batteries
- 250A maximum charge and discharge current
- 12,000W maximum charge and discharge power
- Battery force wake-up from PV, grid and generator
Designed to provide stable battery performance across solar generation, grid charging and generator-supported systems.
Efficiency & Protection
- 99.9% MPPT efficiency
- 95.1% maximum efficiency
- 94.2% EU efficiency
- 95.0% maximum charge and discharge efficiency
- Overcurrent and overvoltage protection
- AC short-circuit protection
- Grid monitoring
- Integrated DC switch
- Type III AC/DC surge protection
Certified to PTPIREE Type A, EN 62109-1, EN 61000, G99 and G100 standards.
- 14kW rated grid-connected AC output
- 12kW rated UPS / backup output
- Single-phase 230V operation
- Three independent MPPT inputs
- Up to 18kW maximum PV input
- Up to 250A battery charge and discharge current
- Generator input up to 18kW
- Multifunction port supporting generator input, smart-load or AC-coupling operation
- Automatic generator control, generator exercise and generator boost
- AI-driven optimisation mode designed to help reduce electricity bills
- <7ms switching time in single-inverter operation
- Double-rated UPS surge power for 0.5 seconds
- Supports up to 10 units in parallel
- IP66-rated enclosure
- Built-in Type III AC/DC surge protection
- 230V rated AC voltage
- 50 / 60Hz rated frequency
- 180–270V acceptable AC input voltage range
- 14,000W rated grid-connected AC output power
- 61A rated AC output current
- 22,500W maximum AC input power
- 100A maximum AC input current
- 100A maximum continuous AC passthrough current
- 0.99 power factor, adjustable from 0.8 leading to 0.8 lagging
- <5% total harmonic current distortion
- 18,000W generator input power
- 80A rated generator input current
- 12,000W rated UPS / backup output power
- 52A rated UPS output current
- 230V rated output voltage
- 50 / 60Hz rated output frequency
- 2 × rated UPS output surge for 0.5 seconds
- <7ms switching in single-inverter operation
- <20ms switching in parallel operation
- Pure sine-wave output
- <3% total harmonic voltage distortion
- 18,000W maximum PV input power
- 340V rated PV input voltage
- Three independent MPPT inputs in a 1:1:1 configuration
- 120–440V MPPT operating range
- 550V maximum PV input voltage
- 100V start-up voltage
- 26A / 15A / 15A maximum PV input current per MPPT
- 31A / 18A / 18A maximum PV short-circuit current per MPPT
- 99.9% MPPT efficiency
The triple-MPPT configuration allows separate solar strings to operate independently, supporting efficient energy harvesting across different roof orientations and array layouts. MPPT 1 accepts a higher input current than MPPTs 2 and 3, making it suited to the largest or highest-current string.
