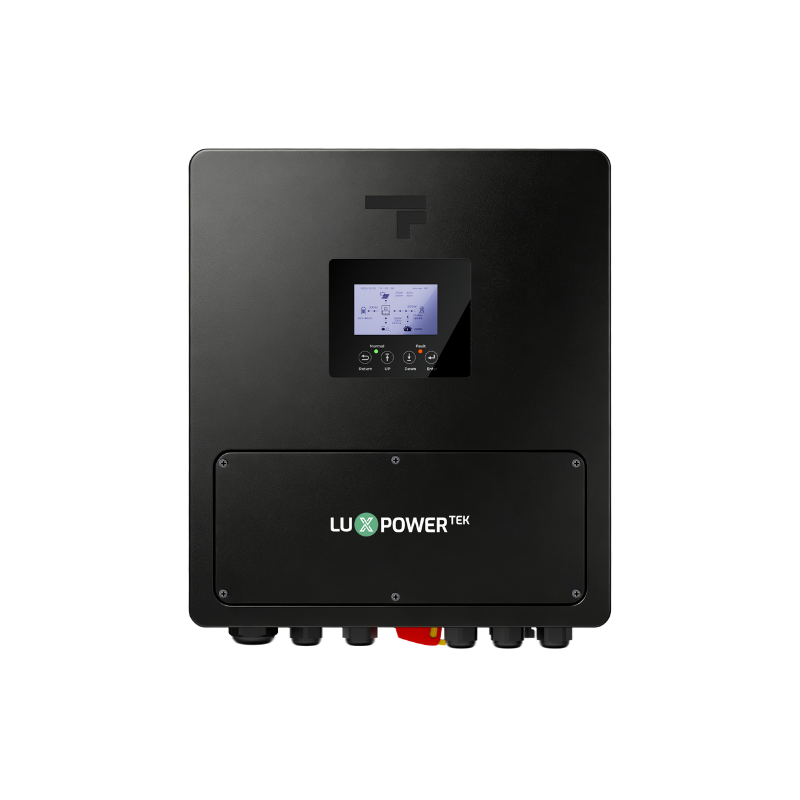

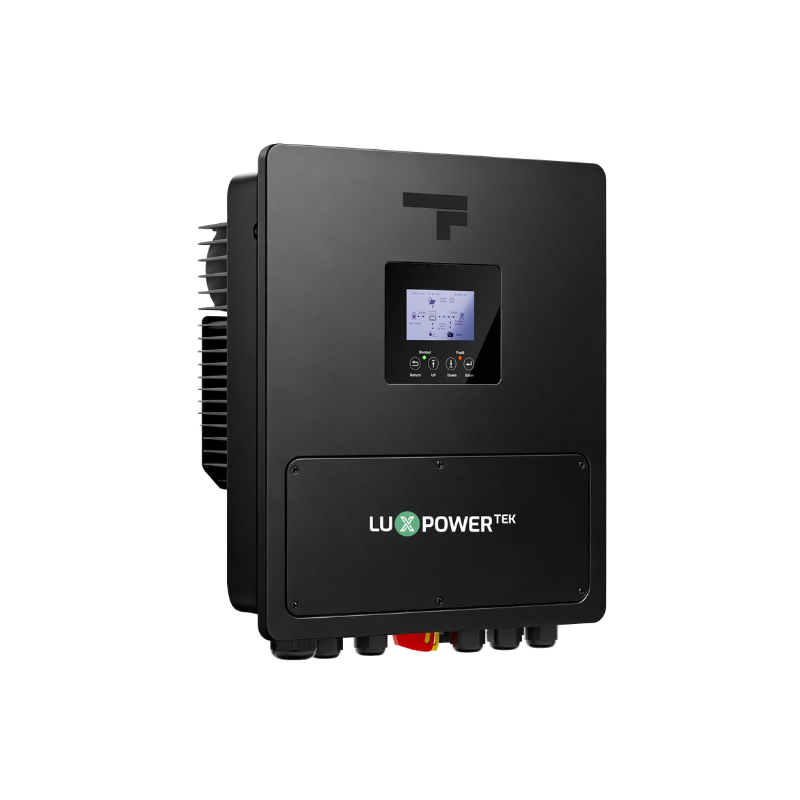

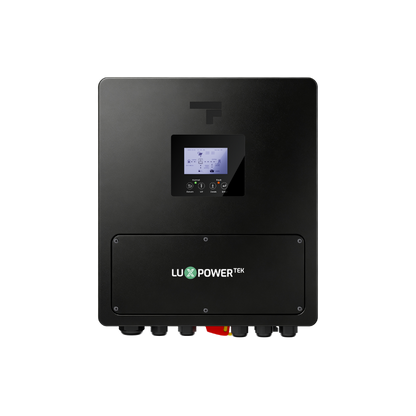

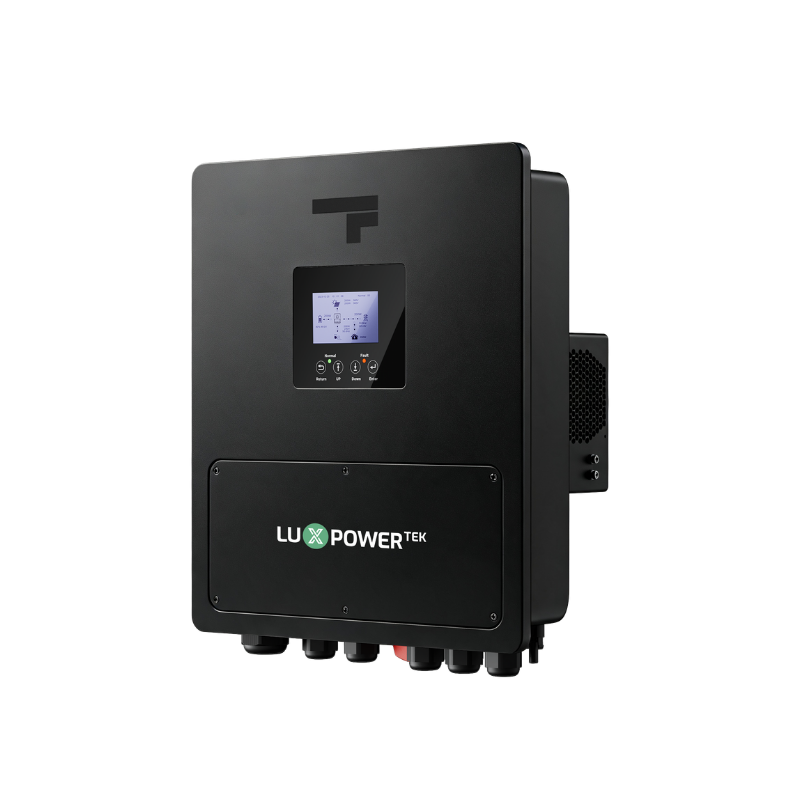

Fogstar x LuxpowerTek SNA PRO 6.5K (Off-Grid Inverter)
The Fogstar x LuxpowerTek SNA PRO 6.5K is a single-phase (230V) off-grid inverter built on advanced LuxpowerTek technology and configured for seamless integration with Fogstar 48V (51.2V) battery systems.
Delivering 6.5kW of continuous output, up to 12kW of PV input and high battery throughput, it provides dependable performance for demanding off-grid and backup power systems.
With dual MPPTs, generator support, IP66 protection and parallel capability for up to 16 units, the SNA PRO 6.5K offers a flexible and scalable foundation for residential, commercial and agricultural energy systems.
PRICES EXCLUDE VAT
Couldn't load pickup availability
Register for a trade account to access our latest trade pricing.
Built for Fogstar Battery Integration
• Stable BMS communication
• Accurate state-of-charge reporting
• Efficient charge and discharge control
Designed to work reliably with Fogstar Energy 48V (51.2V) battery systems.
Battery Pairings
Best overall: Fogstar Energy 10kWh
Highest-performance option: Fogstar Energy 16.1kWh or 16.1kWh ECO
Scalable option: Fogstar Energy 5.12kWh Rack Batteries
Ideal For
• Large residential energy systems
• Commercial and agricultural sites
• High-demand off-grid installations
• Backup and resilience applications
• 6.5kW single-phase (230V) output
• Dual MPPT with up to 12kW PV input
• Supports PV arrays up to 15kW
• Up to 135A charging and 140A discharging
• Seamless grid-to-off-grid switching
• Dedicated generator or smart-load connection
• IP66-rated enclosure
• Parallel capability for up to 16 units
• IP66-rated enclosure
• Compact wall-mounted design
• Smart cooling system
• LCD and LED display
• RS485, Wi-Fi and CAN communication
• Noise emission: <40dB
• Maximum operating altitude: 4000m, with power derating above 2000m
• Operating temperature: -25°C to 60°C, with derating above 45°C
• Storage temperature: -15°C to 60°C
• Relative humidity: 5–95%
• Warranty: 5 years
Dimensions: 384 × 434 × 187mm
Weight: 16.95kg
Battery & Power Performance
• 48V / 51.2V battery system
• 40–60V battery operating range
• 135A maximum charging current
• 140A maximum discharging current
• 6.5kW maximum charging and discharging power
• 6.5kW continuous AC output
• 13,000W surge power for 5 seconds
• 12,000W maximum PV input power
• Supports PV arrays up to 15,000W
• Dual independent MPPT inputs
• 80–400V MPPT operating range
• 500V maximum PV input voltage
• 20A maximum input current per MPPT
• 60A maximum continuous AC passthrough current
• Generator input up to 7,370W
• Parallel operation for up to 16 units
• Battery force wake-up from PV, grid and generator
Built for demanding off-grid and backup systems, with strong solar performance, high battery throughput and flexible system expansion.
Efficiency & Protection
• 99.0% MPPT efficiency
• 96.9% maximum efficiency
• 96.9% EU efficiency
• 97.5% maximum charging efficiency
• 95.5% maximum discharging efficiency
• Switching time: <10ms for a single unit and <20ms in parallel
• Sine-wave output for compatible electrical loads
• Overcurrent and overvoltage protection
• Anti-islanding protection
• AC short-circuit protection
• Grid monitoring
• Residual-current monitoring
• Type II AC/DC surge protection
• Integrated PV isolator switch
• Optional arc-fault circuit interrupter protection
